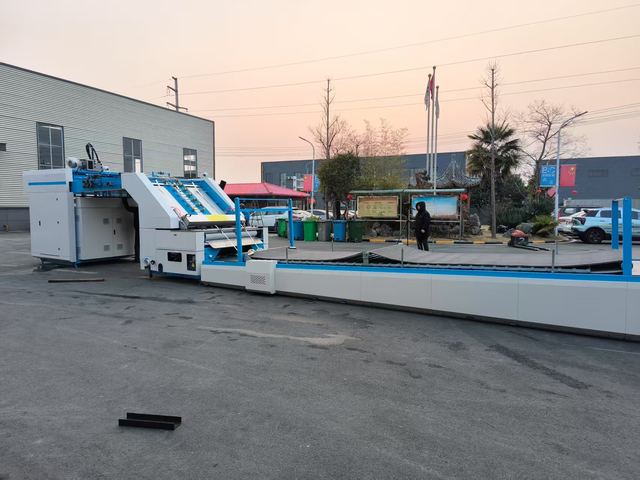

High Speed Servo Flute Laminator Machine 200m/min for Carton Box
Model GFH-1500/1700
Overview
High Speed Servo Flute Laminator Machine 200m/min for Carton Box supplied by Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Listed under Servo Motor. Key published specifications: Net Weight Of Machine 9800KG; Maximum Line Speed 215m/min Or 20000pcs/hour; Warranty Time 2 Years Or 24 Months; Max Sheet Size 1500*1500mm And 1700*1700mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Net Weight Of Machine | 9800KG |
|---|---|
| Maximum Line Speed | 215m/min Or 20000pcs/hour |
| Warranty Time | 2 Years Or 24 Months |
| Max Sheet Size | 1500*1500mm And 1700*1700mm |
| Power Supply | 380V/50Hz 3 Phases |
| Face Paper Thickness | 100-800gsm Printed Paper Or Cardboard |
| Maeketing Type | Fully Intelligent |
| Power | 33KW |
| Automatic Flute Laminator Machine | 1500x1500mm Corrugated Board Machine |
| Application | Laminating Corrugated Cardboard And Paperboard |
| Tower Power | 22KW/24KW |
| Voltage | 380V or customized |
| Automatic grade | Full Automactic |
| Type | Fully automatic flute laminating machine |
| Max paper size | 1500*1500mm |
| Min paper size | 360*380mm |
| Top paper thickness | 120-800g |
| Bottom paper thickness | ≤10mm corrugated board ≥300gsm cardboard |
| Driven type | Electric |
| Dimension(l*w*h) | 16500*2748*3520mm |
| Model | ZGFM-1650 |
| Net Weght | 8000KG |
