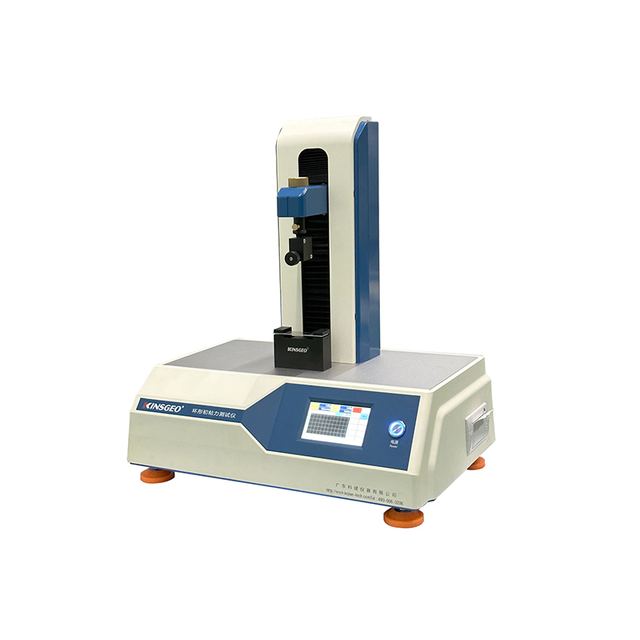

ASTM D6195 Loop Tack Tester Tape Label Ring Initial Viscosity Tester
Model KJ-6031
Overview
ASTM D6195 Loop Tack Tester Tape Label Ring Initial Viscosity Tester, from GUANGDONG KEJIAN INSTRUMENT CO.,LTD in Guangdong. Certification ISO,CE and etc, certificate CE, SGS, ISO and power ac 220V/110V 50Hz/60Hz are among the specifications published.
Technical specifications
| Certification | ISO,CE and etc |
|---|---|
| Certificate | CE, SGS, ISO |
| Power AC | 220V/110V 50Hz/60Hz |
| Test Material | Tape |
| Standards | ASTM D6195-03,PSTC 16 |
| Application | Loop Tack Resistance |
| Weight | 23Kg |
| Test speed | 300mm/min |
| Specimen size | L(125.0mm)×W(24.0mm) |
| Test plate size | L(100.0mm)×W(25.0mm)×T(2.0mm) |
| Power | 220V/110V,50HZ/60HZ |
| Measuring Range | 10kg |
| Measurement Accuracy | Measuring error less than ±0.5% |
| Speed Accuracy | Error less than ±0.5% |
| Sample Size | 125.0mm×24.0mm |
| Machine Dimension | Height 55cm × Width 30cm × Depth 35cm |
| Machine Weight | 23Kg |
| Power Supply | 220V, 50Hz |
| Testing speed | 300mm/min |
