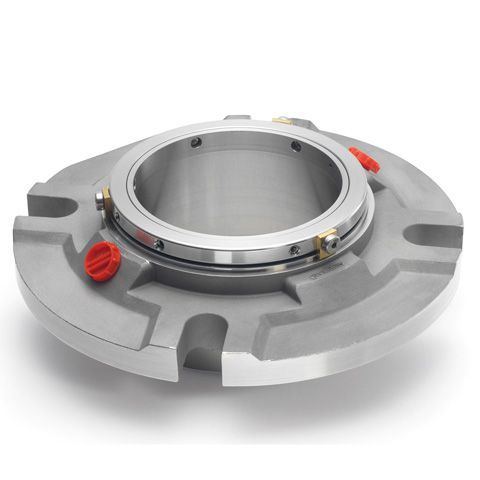

Aesseal CURC CRCO CURE Single Cartridge Mechanical Seal For Ahlstrom APP/APT Pump SIC/SIC/FKM
Overview
Aesseal CURC CRCO CURE Single Cartridge Mechanical Seal For Ahlstrom APP/APT Pump SIC/SIC/FKM, listed under Mechanical Seals by Hefei Supseals International Trade Co., Ltd in Hefei, Anhui. Certification ISO9001, material SIC SIC FKM and function For Oil Pump, Water Pump are among the specifications published.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Material | SIC SIC FKM |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Application | Industrial Pump Seal |
| Temperature | -20℃ to 150℃, dependent on the elastomer |
| Pressure | Up to 28 bar |
| Speed | Up to 25m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Elastomer | FKM, EPDM, Kalrez |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Size | 24mm-100mm/1”-5” |
| Materials | Face: Carbon, SiC, TC |
| Performance Capabilities | Temperature |
| Sizes | 24mm-125mm/1”-5” |
