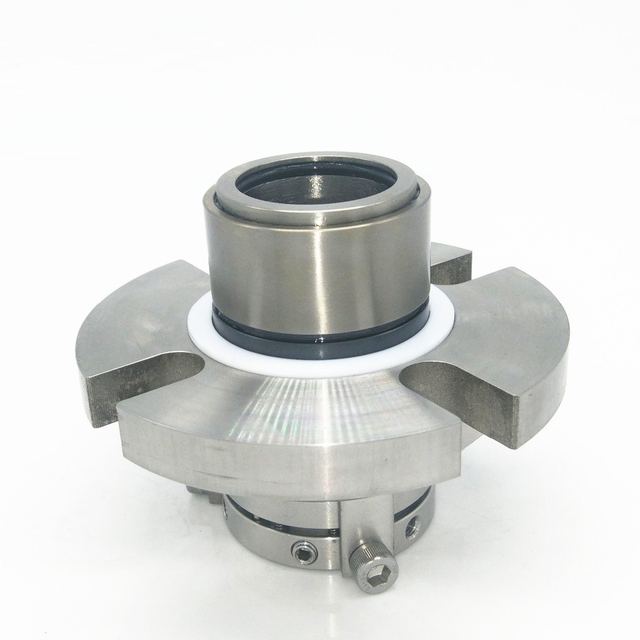

AESSEAL CDSA Double Cartridge Seal Replacement Type CDSA Mechanical Seal
Overview
AESSEAL CDSA Double Cartridge Seal Replacement Type CDSA Mechanical Seal supplied by Hefei Supseals International Trade Co., Ltd. Listed under Mechanical Seals. Key published specifications: Certification iso9001; Material SIC SIC FKM; Function For Oil Pump, Water Pump; Certificate ISO9001. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | iso9001 |
|---|---|
| Material | SIC SIC FKM |
| Function | For Oil Pump, Water Pump |
| Certificate | ISO9001 |
| Application | Industrial Pump Seal |
| Temperature | -20℃ to 150℃, dependent on the elastomer |
| Pressure | Up to 28 bar |
| Speed | Up to 25m/s |
| End play/axial float allowance | ±0.1mm |
| Face | Carbon, SiC, TC |
| Elastomer | FKM, EPDM, Kalrez |
| Spring | SS304, SS316 |
| Metal parts | SS304, SS316 |
| Size | 24mm-125mm/1”-5” |
| Materials | Face: Carbon, SiC, TC |
| Performance Capabilities | Temperature |
| Sizes | 24mm-125mm/1”-5” |
