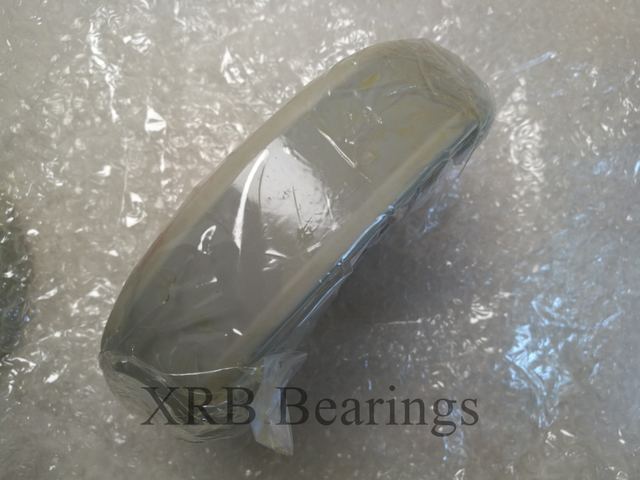

6311 M/c3vl0241 Electrically Insulated Bearings For Traction Motor Application
Model 6311 M/C3VL0241
Overview
6311 M/c3vl0241 Electrically Insulated Bearings For Traction Motor Application, listed by CoatMaster Bearings Liaocheng ZhuoYi Bearing Co.,Ltd in Liaocheng, Shandong. The listing gives certification ISO9001, designation 6311 M/C3VL0241 and electrical resistance Voltages Up To 3000 V DC.
Technical specifications
| Certification | ISO9001 |
|---|---|
| Designation | 6311 M/C3VL0241 |
| Electrical Resistance | Voltages Up To 3000 V DC |
| Cage | Brass |
| Cleance | C3 |
| Dimension | 55×120×29 mm |
| Weight | 1.6 kg |
| Application | Electric Traction Motors |
| Principal dimensions | 55×120×28mm |
| Basic dynamic load rating-C | 71.5 kN |
| Basic static load rating-Co | 45 kN |
| Fatigue load limit-Pu | 0 kN |
| Reference speed | 0 r/min |
| Limiting speed | 11000 r/min |
