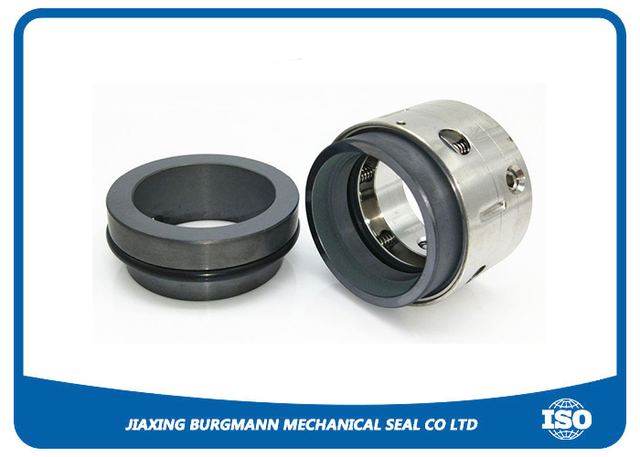

58U Mechanical Pump Seal High Pressure Solution For John Crane Sealing Needs
Model 58U
Overview
58U Mechanical Pump Seal High Pressure Solution For John Crane Sealing Needs supplied by Jiaxing Burgmann Mechanical Seal Co., Ltd. Listed under Mechanical Seals. Key published specifications: Application Pump Seal John Crane; Pressure Up To 6Mpa; Temperature -20°C To +200°C; Speeds 20m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Application | Pump Seal John Crane |
|---|---|
| Pressure | Up To 6Mpa |
| Temperature | -20°C To +200°C |
| Speeds | 20m/s |
| Seal Face | Carbon, SIC, TC |
| Seat Material | SIC, TC, Ceramic |
| Shaft diameter | 14~100mm |
| Slidingvelocity | 20m/s |
| Rotary Ring | Car / SIC/TC/Cer |
| O-Ring | , EPDM, NBR, AFLAS, Kalrez,PTFE |
| Spring and Metal Parts | SUS304, SUS316, Titan, 904L |
| Stationary Ring | Car / SIC /TC/Cer |
| Certification | FDA certificate |
| Operating Limited | Shaft diameter |
| Material | Rotary Ring |
| Mechanical seal 58U application range | Pressure in the seal chamber: 0-1.2MPa |
| Pressure in the seal chamber | 0-1.2MPa |
| Temperature in the seal chamber | -30ºC------180ºC |
| Medium | water,oil and minor corrosive liquid |
