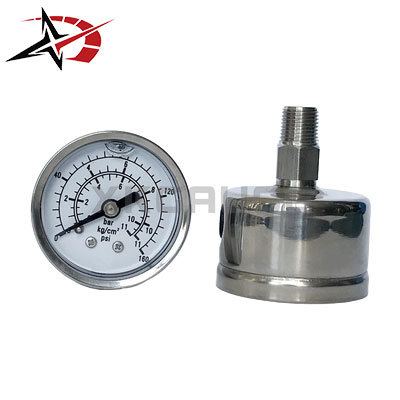

40mm Liquid Filled Pressure Gauge 0-11 Bar Axial Flange Back Mount Manometer
Model YN40ZT
Overview
Anhui Xingkong Instrument Co., Ltd in Anhui lists 40mm Liquid Filled Pressure Gauge 0-11 Bar Axial Flange Back Mount Manometer. Published figures include certification CE, ISO, product type Mini Liquid Filled Pressure Gauge and dial size 40 mm.
Technical specifications
| Certification | CE, ISO |
|---|---|
| Product Type | Mini Liquid Filled Pressure Gauge |
| Dial Size | 40 mm |
| Pressure Range | 0-11 Bar |
| Mounting Type | Axial Flange |
| Filling Medium | Glycerin |
| Case Material | Stainless Steel |
| Display Type | Analog Pointer |
| Accuracy | Class 1.6 |
| Connection Material | Brass |
| Window | Polycarbonate |
| Fill Medium | Glycerin |
| Connection | G1/4 |
| Mounting | Axial Panel Flange |
