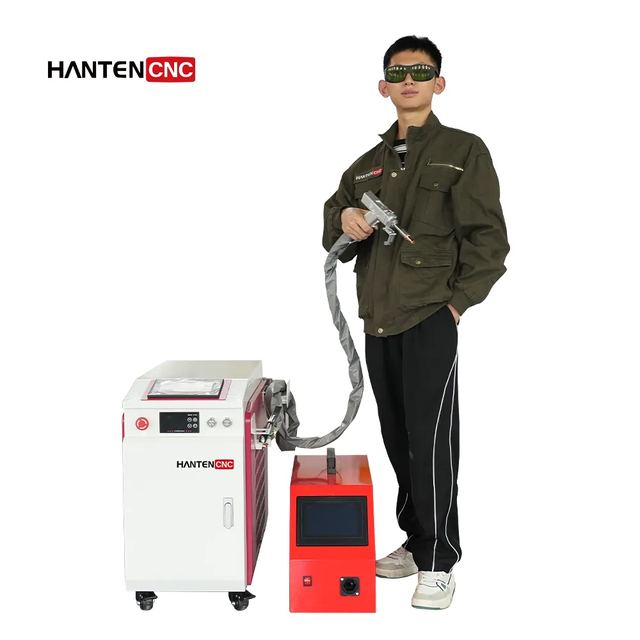

4 in 1 Handheld Metal Laser Welding Machine (1500W, 2000W)
Model HTW1500/2000
Overview
4 in 1 Handheld Metal Laser Welding Machine (1500W, 2000W) supplied by HANTENCNC. Key published specifications: Laser wavelength 1080nm; Fiber length 10M/12M/15M/Maximum20M; Operating mode Continuous Welding; Maximum oscillation speed 20000mm/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser wavelength | 1080nm |
|---|---|
| Fiber length | 10M/12M/15M/Maximum20M |
| Operating mode | Continuous Welding |
| Maximum oscillation speed | 20000mm/s |
| Laser power | 1500W/2000W |
| Rated Power | 6300W |
| Operating system | Handheld Welding System |
| Humidity range operating environment | < 70% non-condensing |
| Welding gap requirements | ≤0.5mm |
| Working voltage| Input Current | 220V/2P | 29A |
| Welder dimensions | 400*950*710mm |
| Welder net weight | 109.2KG |
