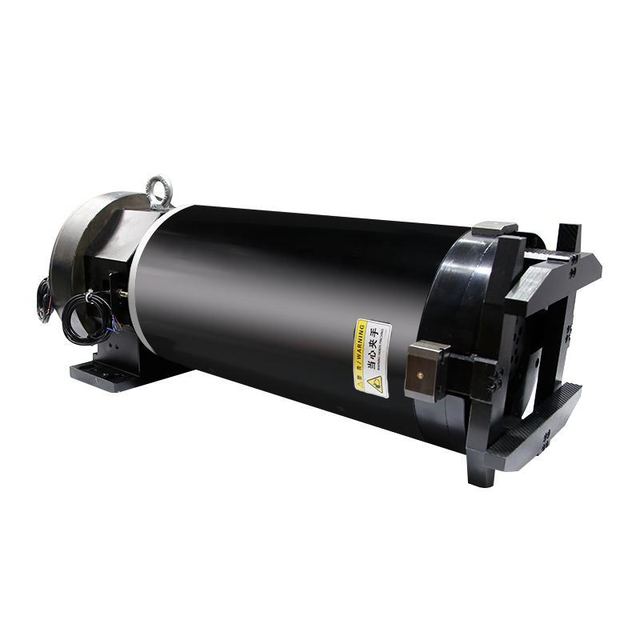

360mm Blowing/Dust suction Feeding Chuck R240T Pneumatic Rotate Rear Chuck For Fiber Laser Cutting
Model R240T
Overview
360mm Blowing/Dust suction Feeding Chuck R240T Pneumatic Rotate Rear Chuck For Fiber Laser Cutting, listed by Lingman Machinery Technology (Changzhou) Co., Ltd in Changzhou, Jiangsu. Published figures include function Blowing Dust/ Dust Suction, drive type Pneumatic / Servo and repeat accuracy ≤0.05mm.
Technical specifications
| Function | Blowing Dust/ Dust Suction |
|---|---|
| Drive Type | Pneumatic / Servo |
| Repeat Accuracy | ≤0.05mm |
| Rotation Accuracy | ≤0.05mm |
| Max Speed | 150 RPM |
| Working Pressure | 0.4–0.8MPa |
| Application | Round, Square, Special-Shaped Pipes |
| Center Height | 145mm |
| Stroke | 80mm |
| Allowable Pressure | 0.2-0.9Mpa |
| Limit Speed | 200R/Min |
| Clamping Range | 5-365mm |
| Max. Clamping Force | 6KN |
| Weight | 145KG |
