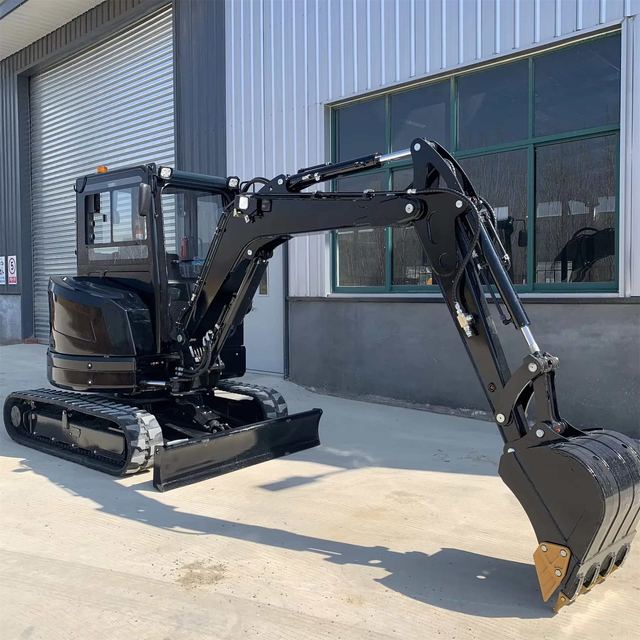

3.5 Tonne Mini Excavator
Overview
3.5 Tonne Mini Excavator supplied by SHANDONG GONGWO MACHINERY CO., LTD. Listed under Excavators. Key published specifications: Emission Standard Euro 5/EPA4; Make/Model KUBOTA/D1703; Power/Rotation speed 18.5kw (25HP)/2200rpm; Type In-line water-cooled, 4-stroke, mechanical pump, naturally aspirated. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Emission Standard | Euro 5/EPA4 |
|---|---|
| Make/Model | KUBOTA/D1703 |
| Power/Rotation speed | 18.5kw (25HP)/2200rpm |
| Type | In-line water-cooled, 4-stroke, mechanical pump, naturally aspirated |
| Max torque | 97.4N.m/1500rpm |
| Displacement | 1.642L |
| Engine | KUBOTA |
| Other engines | Briggs & Stratton gasoline engine |
| Maximum Travel speed (High/low) | 14.2/4.4km/h |
| Width of steel track shoe | 300mm |
| Final drive | 2×0.7L |
| Overall dimension (L×W×H) | 4915mm×1720mm×2525mm |
| Axle base (Track length on ground) | 1670mm |
| Length of rubber track | 2154mm |
| Track gauge | 1420mm |
| Minimum Ground clearance | 295mm |
| Swing radius at tail | 860mm |
| Swing radius at front | 2538mm |
| Height of blade | 350mm |
| Maximum Digging height | 4800mm |
| Maximum Dumping height | 3406mm |
| Maximum Digging depth | 3208mm |
| Maximum Vertical digging depth | 2957mm |
| Minimum swing radius | 2530mm |
| Max height when min.swing radius | 3655mm |
| Maximum Lifting height of blade | 365mm |
| Standard Bucket capacity | 0.12m³ |
| Swing speed | 12rpm |
| Ground pressure | 32Kpa |
| Maximum Bucket digging force | 30.4KN |
