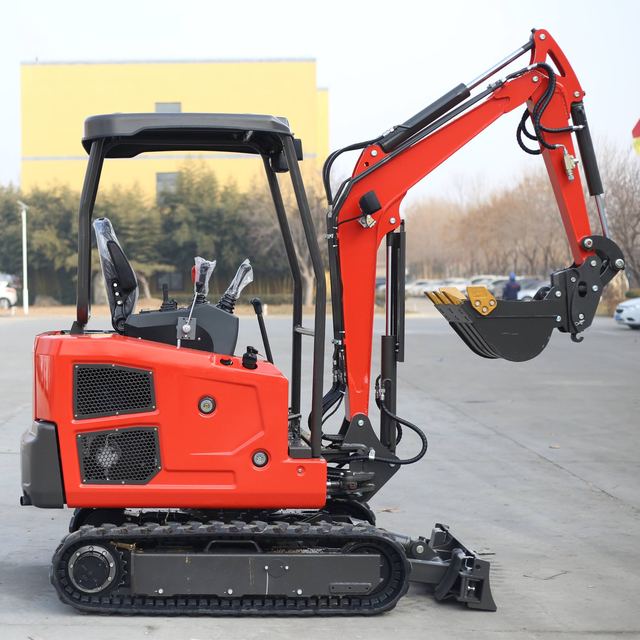

2.5 Ton Mini Excavator
Overview
2.5 Ton Mini Excavator supplied by SHANDONG GONGWO MACHINERY CO., LTD. Listed under Excavators. Key published specifications: Emission Standard Euro V /EPA; Make / Model Laidong/ KUBOTA; Power /Rotation speed 385/ D1105; Maximum Travel speed 2 .5km/h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Emission Standard | Euro V /EPA |
|---|---|
| Make / Model | Laidong/ KUBOTA |
| Power /Rotation speed | 385/ D1105 |
| Maximum Travel speed | 2 .5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Standard Bucket capacity | 0.06m ³ |
| Swing speed | 10-12rpm |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Working weight | 2500kg |
| Overall dimension (L*W*H) | 3655mm*1050mm*2232mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Minimum Ground clearance | 230mm |
| Swing radius at tail | 1000mm |
| Maximum Digging height | 3391mm |
| Maximum Dumping height | 2290mm |
| Maximum Digging depth | 21250mm |
| Maximum Vertical digging depth | 1771mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 240mm |
