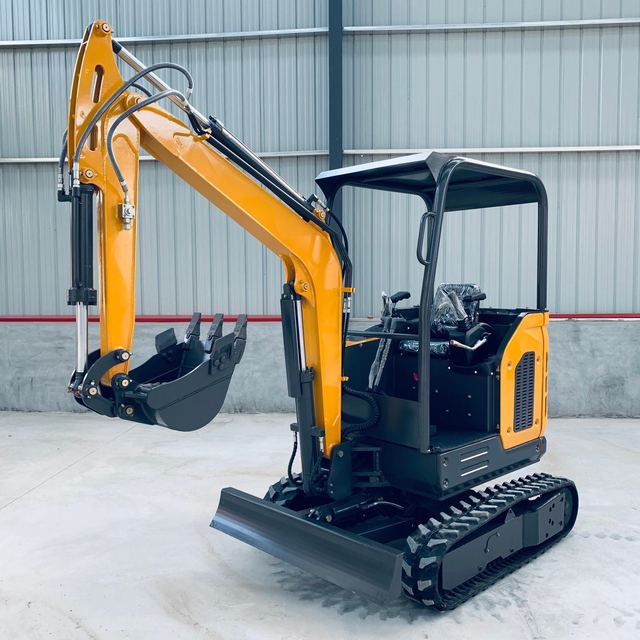

2.5 ton mini excavator
Model D1105
Overview
2.5 ton mini excavator supplied by SHANDONG GONGWO MACHINERY CO., LTD. Listed under Excavators. Key published specifications: Emission Standard Euro 5 / EPA4; Engine KUBOTA; Make Japan KUBOTA D1105 engine; Power (Rotation speed) 14KW. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Emission Standard | Euro 5 / EPA4 |
|---|---|
| Engine | KUBOTA |
| Make | Japan KUBOTA D1105 engine |
| Power (Rotation speed) | 14KW |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 9 rpm |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Operating weight | 2500kg |
| Overall dimension (L W H) | 3665mm 1050mm 2260mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 820mm |
| Min.Ground clearance | 210mm |
| Swing radius at tail | 955mm |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
