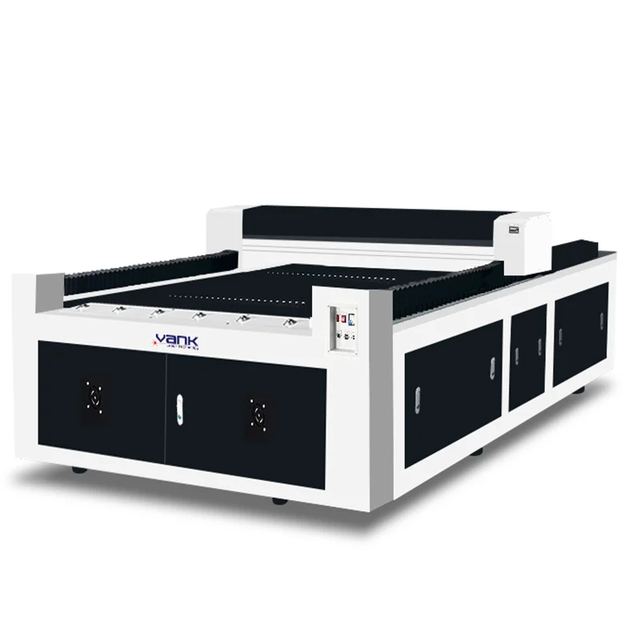

1325 Big Platform CO2 Laser Engraving Cutting Machine
Overview
1325 Big Platform CO2 Laser Engraving Cutting Machine supplied by Vank. Key published specifications: Model VankCut-1325 / VankCut-1530 / VankCut-2030; Laser Power 150W 180W 200W 300W; Working Area 1300*2500mm/1500*3000mm/2000*3000mm; Cooling Type Water Cooling. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | VankCut-1325 / VankCut-1530 / VankCut-2030 |
|---|---|
| Laser Power | 150W 180W 200W 300W |
| Working Area | 1300*2500mm/1500*3000mm/2000*3000mm |
| Cooling Type | Water Cooling |
| Max Engraving Speed | 600mm/s |
| Max Cutting speed | 300mm/s |
| Min.Engraving Size | Chinese:2*2mm, English Letter:1*1mm |
| Highest Scanning Precision | 4000DPI |
| Locating Accuracy | ≤0.01mm |
| Controlling Software | DSP Control System |
| Graphic Format Supported | DST/PLT/BMP/DWG/DXF/AI/HPGL… |
| Color Separation | Yes |
| Working Environment | Temperature:0-45C, Humidity5-95%(No Condensate Water) |
| Temperature | 0-45C, Humidity5-95%(No Condensate Water) |
