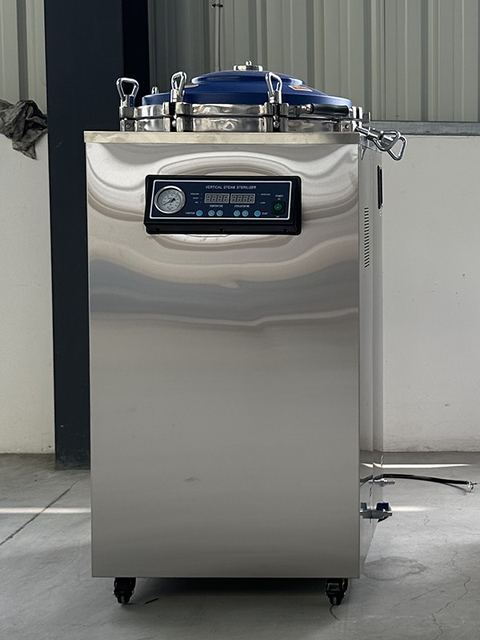

100L Gravity Exhaust Vertical Autoclave Sterilizer For Hospitals And Labs
Model STV-LD100
Overview
100L Gravity Exhaust Vertical Autoclave Sterilizer For Hospitals And Labs supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Capacity 100L; Chamber Size Ø450×650mm; Door Structure Bolt Lock Door. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Capacity | 100L |
| Chamber Size | Ø450×650mm |
| Door Structure | Bolt Lock Door |
| Basket | 2 Pcs Buckets |
| Material | Stainless Steel |
| Autoclave Weight | 78kg |
| Working Press. | 0.22Mpa |
| Model | STV-LD100 |
| Volume | 100L |
| Power | 4.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø450×650 |
| Bucket dimension | Ø420×540 |
| Basket dimension(optional) | Ø410×300×2 |
| Gross/net weight | 103/78KG |
| Integrated automatic protection functions | Over-temperature protection |
| Number of Baskets | 2 pcs sterilizing baskets |
| Display | LCD Touch Screen |
