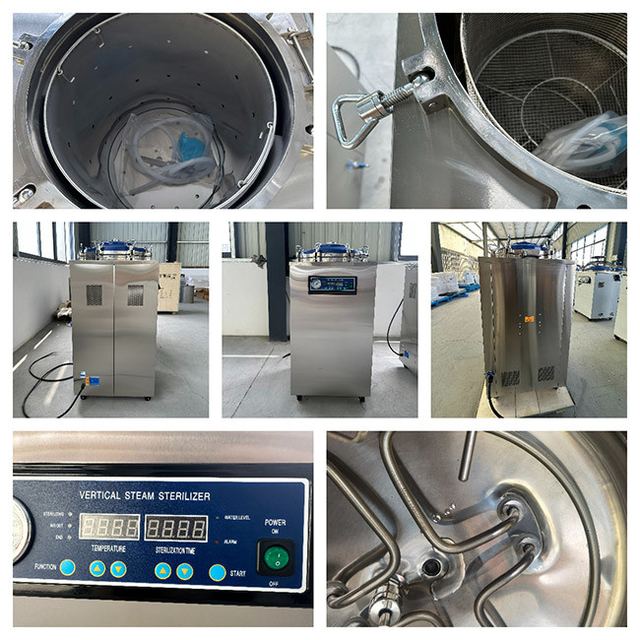

75L LED display Vertical Top Loading Autoclave Manual
Model STV-LD75
Overview
75L LED display Vertical Top Loading Autoclave Manual supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Capacity 75L; Chamber Size Ø400×625mm; Door Structure Bolt Lock Door. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Capacity | 75L |
| Chamber Size | Ø400×625mm |
| Door Structure | Bolt Lock Door |
| Basket Number | 2 Pcs |
| Material | Stainless Steel |
| Autoclave Weight | 61kg |
| Working Press. | 0.22Mpa |
| Model | STV-LD75 |
| Volume | 75L |
| Power | 4.5kW |
| Voltage | AC 220V,50HZ |
| Rated working pressure | 0.22Mpa |
| Sterilization time setting range | 4~120 min |
| Drying time setting range | 0~240min |
| Chamber volume | Ø400×625 |
| Bucket dimension | Ø380×560 |
| Basket dimension(optional) | Ø360×280×2 |
| Gross/net weight | 82/61KG |
| Integrated automatic protection functions | Over-temperature protection |
| Number of Baskets | 2 pcs sterilizing baskets |
| Display | LCD Touch Screen |
