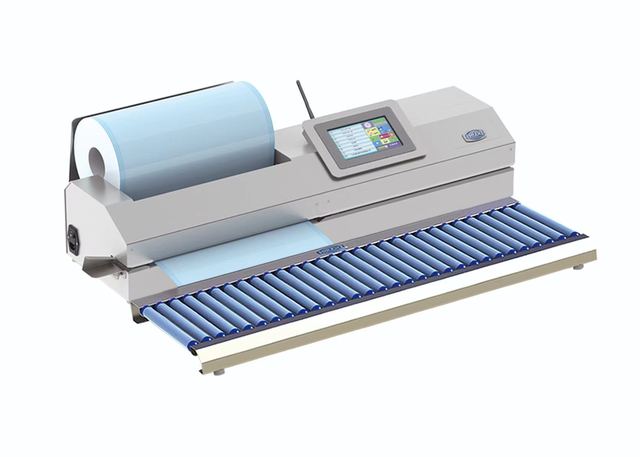

EF121-A Dual-Print Integration Machine with Cutting and Sealing
Model EF121-A
Overview
EF121-A Dual-Print Integration Machine with Cutting and Sealing supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Cutting Length ≥50 Mm; Cutting Speed 18 ± 0.5 M/min; Cutting Width ≤400 Mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Cutting Length | ≥50 Mm |
| Cutting Speed | 18 ± 0.5 M/min |
| Cutting Width | ≤400 Mm |
| Sealing Pressure | 85 ± 30 N |
| AC Power Supply | 220 V ±10%,50 Hz |
| Weight | 46 Kg |
| Equipment Dimensions | 1090 × 290 × 200 Mm |
| Roller Dimensions | 1100*286*52 Mm |
| Operating Temperature | Adjustable From 60°C To 220°C |
| Sealing edge | adjustable from 0 to 35 mm |
| Printing Method | Dot matrix printer |
| Working Environment | 10–40°C |
| Power | 600 W |
| Maximum current | 3.2 A |
| Insurance Strips | 5A * 2 |
| Shell material | 304 stainless steel |
| Optional Ultrasonic Frequency | 28KHZ, 40KHZ, 80KHZ, 100KHZ |
| Material | 304 Stainess Steel |
