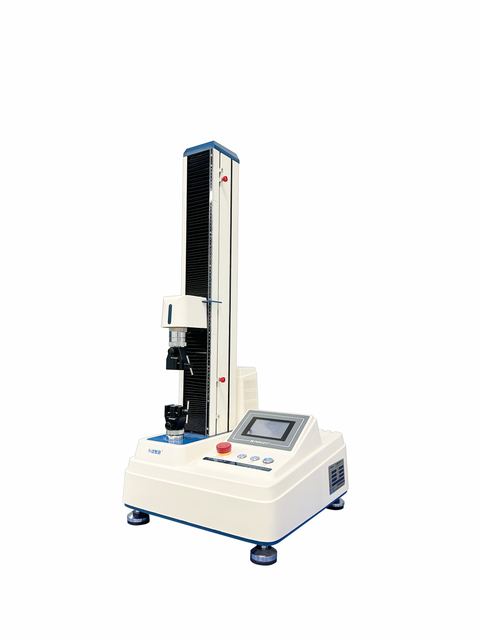

0.5-Grade New High-Precision Single-Column Tensile Machine
Model KJ-1065B-N
Overview
0.5-Grade New High-Precision Single-Column Tensile Machine supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Key published specifications: Certification CE/ISO; Power AC220V 50Hz; Weight 90kg; Application Universal Tester,tensile Testing. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE/ISO |
|---|---|
| Power | AC220V 50Hz |
| Weight | 90kg |
| Application | Universal Tester,tensile Testing |
| Standard | BS.EN.ASTM |
| Stroke | 450mm(excluding Clamp) |
| Design Standards | ASTM D903,GB/T2790/2791/2792,CNS11888,JIS-K6854,PSTC7 |
| Model | KJ-1065B-N |
| Capacity | 1,2,5,10,20,50,100,200kg optional |
| Range of speed | 50～400mm/min adjustable,constant speed, 300mm/min |
| Test space | 120mmMAX |
| Dimention | (W×D×H)50×50×120cm |
| Optional accessories | stretcher, air clamp |
| Control | PC |
| Test Speed | 50～400mm/min adjustable,constant speed 300mm/min |
| Accuracy | ±0.5% or better |
| Data Output | USB/RS232/RS485 |
