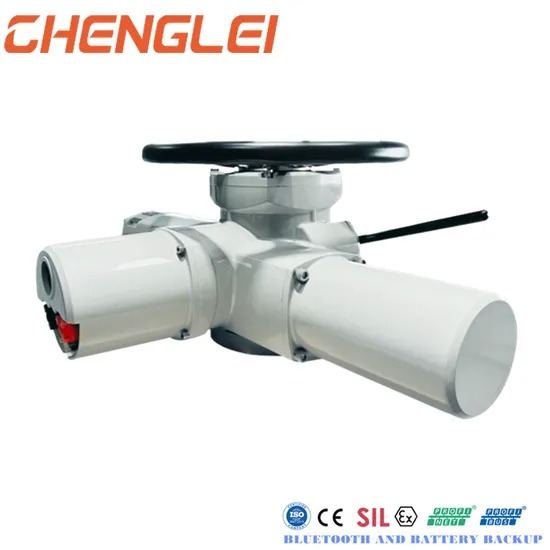

Z Series 3 Position Heating Fast Acting Electric Valve Actuator with Hydrostatic Function
Overview
Z Series 3 Position Heating Fast Acting Electric Valve Actuator with Hydrostatic Function, listed under Valve Actuators by Changzhou Chenglei Valve Technology Co., Ltd in Changzhou, Jiangsu. The listing gives power source Electric Power, connection Flange and material Aluminum Alloy.
Technical specifications
| Power Source | Electric Power |
|---|---|
| Connection | Flange |
| Material | Aluminum Alloy |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Speed | 9r/min,18r/min,24r/min,36r/min/48r/min |
| Control Method | On-off Or Modulating.4-20mA |
| Protection Grade | IP65/IP67/IP68 |
| Speed options | 9r/min, 18r/min, 24r/min, 36r/min, 48r/min |
| Control methods | On-off or modulating (4-20mA) |
| Motor duty | Short time (S2 10min/15min/30min) or continuous (S1/S3/S4/S6 24%/40%) |
| Connection types | JB2920 Torque or ISO5210 (GB/T 12222) Thrust flange |
| Insulation level | F level |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Temperature range | -20°C to +60°C (special orders -60°C to +70°C) |
| Humidity | ≤95% at +25°C |
| Anti-corrosion coating | Electrostatic powder spraying |
