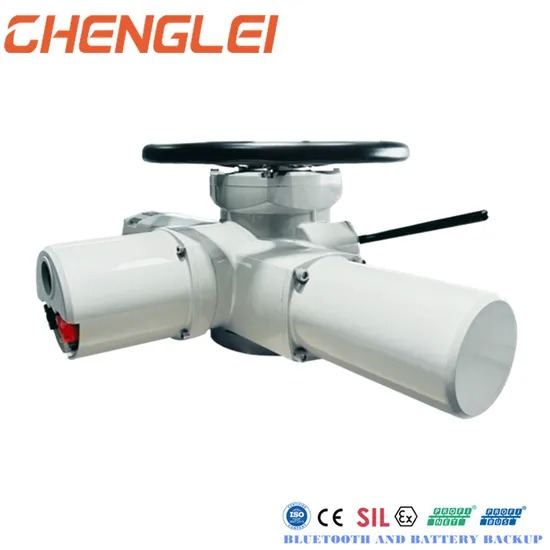

Large Multi-Voltage Electric Valve Actuator with Manual Override for Valve Damper HVAC Applications
Overview
Large Multi-Voltage Electric Valve Actuator with Manual Override for Valve Damper HVAC Applications supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Power Source Electric Power; Connection Flange; Material Aluminum Alloy; Thermal Protection Yes. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power Source | Electric Power |
|---|---|
| Connection | Flange |
| Material | Aluminum Alloy |
| Thermal Protection | Yes |
| Bluetooth Connection | Yes |
| Voltage | 380V/110V/220V/440V/660V AC Or 12V/24V DC |
| Rated Frequency | 50HZ/60HZ |
| Speed | 9r/min,18r/min,24r/min,36r/min,48r/min |
| Control Method | On-off Or Modulating.4-20mA |
| Protection Grade | IP65/IP67/IP68 |
| Speed options | 9r/min, 18r/min, 24r/min, 36r/min, 48r/min |
| Control methods | On-off or modulating (4-20mA) |
| Insulation level | F level |
| Certifications | CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost |
| Environmental temperature range | -20°C to +60°C (special orders -60°C to +70°C) |
| Relative humidity | ≤ 95% (at +25°C) |
| Anti-corrosion coating | electrostatic powder spraying |
| Body material options | Aluminum alloy/stainless steel/carbon steel |
