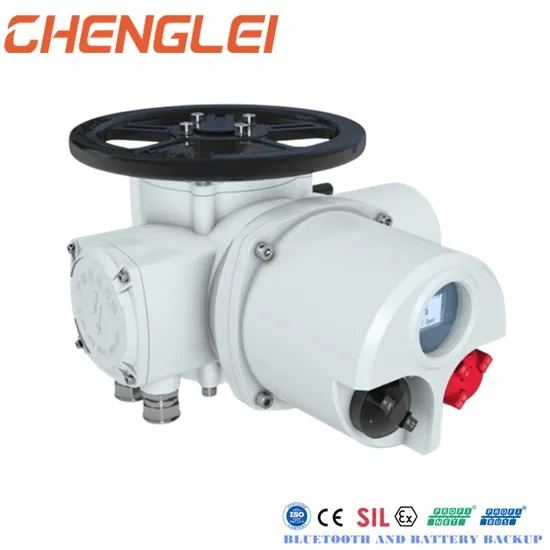

NEMA4/4X/7&9 Enclosure Electric Valve Actuator with ISO5210 Thrust Flange and 30000/Year Production Capacity

NEMA4/4X/7&9 Enclosure Electric Valve Actuator with ISO5210 Thrust Flange and 30000/Year Production Capacity

Overview

NEMA4/4X/7&9 Enclosure Electric Valve Actuator with ISO5210 Thrust Flange and 30000/Year Production Capacity supplied by Changzhou Chenglei Valve Technology Co., Ltd. Listed under Valve Actuators. Key published specifications: Protection Grade IP65/IP67/IP68 options available; Insulation Level F level; Certifications CCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost; Enclosure NEMA 4/4X/7&9 models available. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Protection GradeIP65/IP67/IP68 options available
Insulation LevelF level
CertificationsCCC/UL/CE/IECex/SIL/RoHS/ISO/CE/Gost
EnclosureNEMA 4/4X/7&9 models available
Environmental Temperature-20°C to +60°C (special orders -60°C to +70°C)
Relative Humidity≤ 95% (at +25°C)
Explosion ProofATEX/Exd BT4/CT4
Anti-Corrosion CoatingElectrostatic powder spraying
Body MaterialAluminum alloy/stainless steel/carbon steel
Power SourceElectric Power
ConnectionFlange
MaterialAluminum Alloy
Thermal ProtectionYes
Bluetooth ConnectionYes
Voltage380V/110V/220V/440V/660V AC Or 12V/24V DC
Rated Frequency50HZ/60HZ
Speed9r/min,18r/min,24r/min,36r/min/48r/min
Control MethodOn-off Or Modulating.4-20mA
Motor DutyS2 10min,15min,30min Or S1/S3/S4/S6 24%,40%
Variable speed options9r/min, 18r/min, 24r/min, 36r/min, 48r/min
Control methodsOn-off or modulating (4-20mA)
