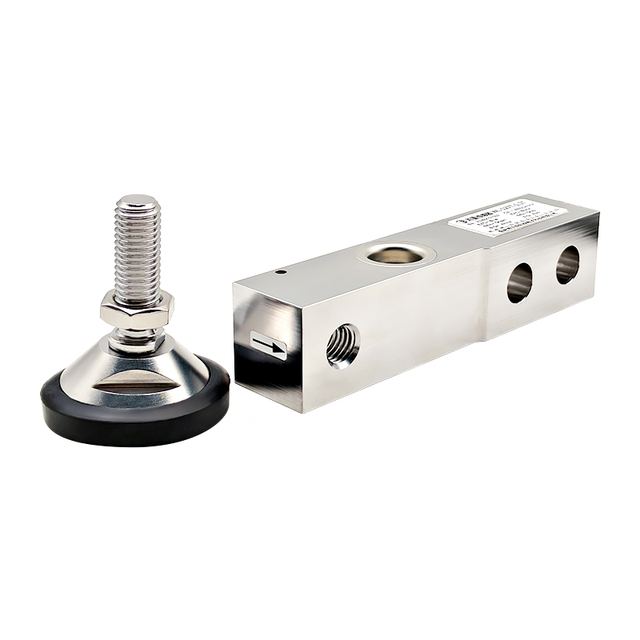

WL-127 Industrial Stainless Load Cell 0.11t 0.22t 0.55t 1.1t 1.76t 2.2t 4.4t
Model WL-127
Overview
WL-127 Industrial Stainless Load Cell 0.11t 0.22t 0.55t 1.1t 1.76t 2.2t 4.4t supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 0.11/0.22/0.55/1.1/1.76/2.2/4.4t; Combined Error 0.017%F.S.; Non-linearity 0.017%F.S.; Repeatability 0.017%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 0.11/0.22/0.55/1.1/1.76/2.2/4.4t |
|---|---|
| Combined Error | 0.017%F.S. |
| Non-linearity | 0.017%F.S. |
| Repeatability | 0.017%F.S. |
| Rated Output | 1.94±0.1mV/V |
| Zero Balance | ±2%F.S. |
| Insulation Resistance | >5000MΩ/100VDC |
| Material | Stainless Steel |
| Safe Overload | 150%F.S. |
| Protection Class | IP68 (Customizable) |
| Recommended Excitation | 5~15VDC |
| Operation Temp. | -30~70°C |
| Cable Size | Ф5.4x1500mm(Customizable) |
| Certification | CNAS |
