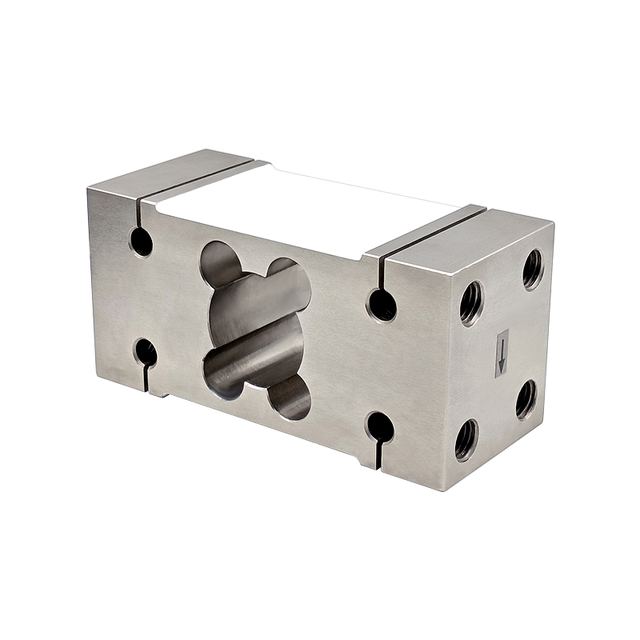

WL-121 Stainless Bending Beam Load Cell 50-1000kg IP67
Model WL-121
Overview
WL-121 Stainless Bending Beam Load Cell 50-1000kg IP67 supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 50/100/200/300/500/1000kg; Combined Error 0.017%F.S.; Non-linearity 0.017%F.S.; Repeatability 0.01%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 50/100/200/300/500/1000kg |
|---|---|
| Combined Error | 0.017%F.S. |
| Non-linearity | 0.017%F.S. |
| Repeatability | 0.01%F.S. |
| Rated Output | 2.0±0.002mV/V |
| Zero Balance | ≤1%mV/V |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Stainless Steel |
| Cable | Φ6.3×2500mm (custom) |
| Safe Overload | 150%F.S. |
| Protection Class | IP67(Customizable) |
| Operation Temp. | -40~65°C |
| Cable Size | Ф6.3x2500mm(Customizable) |
| Certification | CNAS |
