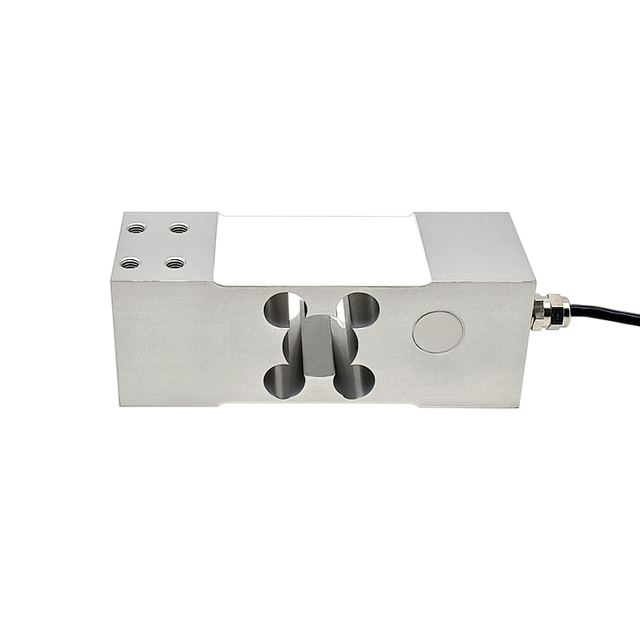

WL-118 Aluminum Alloy Single Point Load Cell 30-500kg IP65
Model WL-117
Overview
WL-118 Aluminum Alloy Single Point Load Cell 30-500kg IP65 supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 30/50/100/200/300/500kg; Rated Output 2.0±0.05mV/V; Max.platform Size 600mm*60mm; Nominal Displacement 0.6-0.96mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 30/50/100/200/300/500kg |
|---|---|
| Rated Output | 2.0±0.05mV/V |
| Max.platform Size | 600mm*60mm |
| Nominal Displacement | 0.6-0.96mm |
| Product Material | ALuminum Alloy |
| Output Resistance | ≥5000MΩ/100VDC |
| Combined Error | ±0.018%F.S. |
| Safe Overload | 150%F.S. |
| Material | Aluminum Alloy |
| Accuracy class | C3 |
| Zero balance | ±0.2%mV/V |
| Non-linearity | ±0.02%F.S. |
| Hysteresis | ±0.017%F.S. |
| Repeatability | ±0.018%F.S. |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5-15VDC |
| Ultimate overload | 200%F.S. |
| IP class | IP65 (Customizable) |
| Cable size | Φ5×3000mm (Customizable) |
| Certification | CNAS |
