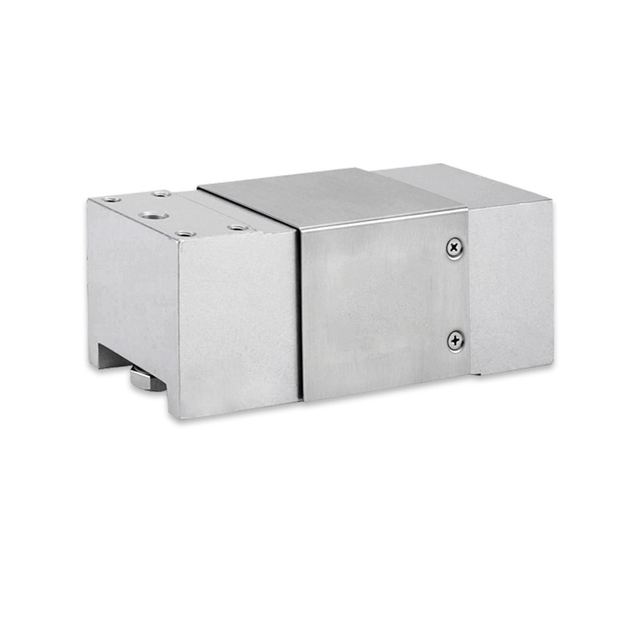

WL-120 Aluminum Alloy Load Cell 50kg To 1000kg 800x800mm Platform Weighing
Model WL-120
Overview
WL-120 Aluminum Alloy Load Cell 50kg To 1000kg 800x800mm Platform Weighing supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 50~1000 Kg; Rated Output 2.0±10%mV/V; Combined Accuracy ±0.017%F.S.; Recommended Excitation 10~15VDC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 50~1000 Kg |
|---|---|
| Rated Output | 2.0±10%mV/V |
| Combined Accuracy | ±0.017%F.S. |
| Recommended Excitation | 10~15VDC |
| Material | Aluminum Alloy |
| Cable Size | Ф5x2000mm(Customizable) |
| Safe Overload | 150%F.S |
| Temp | -10~40°C |
| Protection | IP66 (Customizable) |
| Platform Max | 800×800mm |
| Nominal Displacement | 0.3~0.5mm |
| Combined Error | 0.017%F.S. |
| Non-linearity | 0.017%F.S. |
| Repeatability | 0.017%F.S. |
| Zero Balance | ±0.02%mV/V |
| Insulation Resistance | >5000M Ω /100VDC |
| Operation temp | -10~40°C |
| IP class | IP66 (Customizable) |
| Certification | CNAS |
