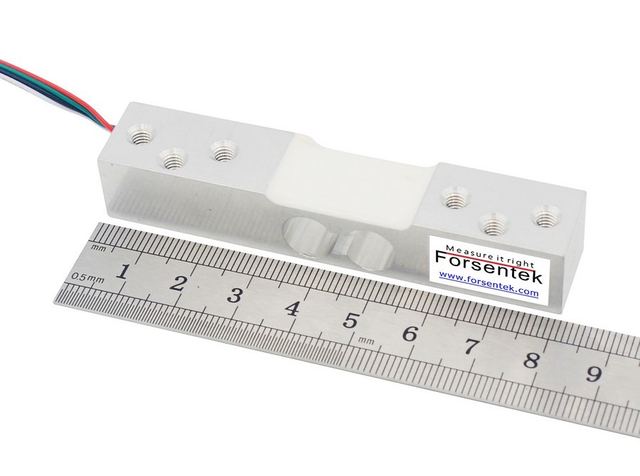

Digital Load Cell With RS485 Output For Smart Shelf Weighing System
Model FDNE
Overview
Digital Load Cell With RS485 Output For Smart Shelf Weighing System, listed by Forsentek Co. Limited. Type Single Point Digital Load Cell, output RS485/RS232 and capacity 2kg 5kg 10kg are among the specifications published.
Technical specifications
| Type | Single Point Digital Load Cell |
|---|---|
| Output | RS485/RS232 |
| Capacity | 2kg 5kg 10kg |
| Structure | Single Point Load Cell |
| Protocol | Modbus RTU |
| Rated capacity | 2kg 5kg 10kg |
| Excitation | 5-12V DC |
| Nonlinearity | ±0.02% R.O. |
| Hysteresis | ±0.02% R.O. |
| Nonrepeatability | ±0.01% R.O. |
| Creep(30min) | ±0.02% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.05% R.O./10 o C |
| Temperature shift span | ±0.03% R.O./10 o C |
| Ingress protection | IP65 |
| Material of element | Aluminum alloy |
| Cable | Ø3 *400 mm 4-wire |
| Wiring code | Red--Power+ Black--Power- Green--RS485 A White--RS485 B |
