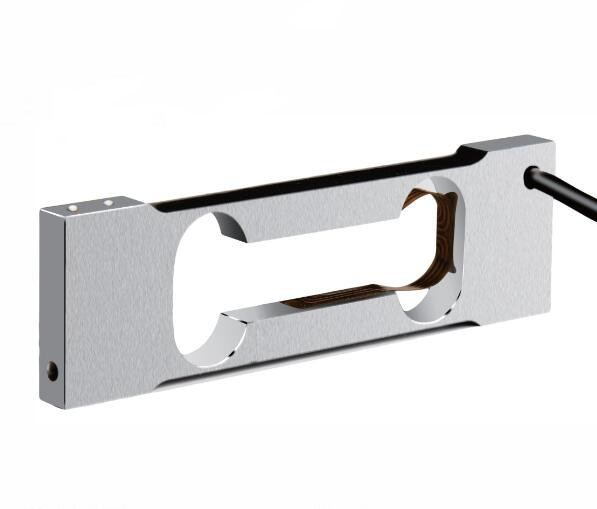

WL-113 Aluminum Alloy Single Point Load Cell 0.1/0.3/0.6/1/3 Kg For Ultra Light Loads
Model WL-113-01
Overview
WL-113 Aluminum Alloy Single Point Load Cell 0.1/0.3/0.6/1/3 Kg For Ultra Light Loads supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity 0.1kg/0.3kg/0.6kg/1kg/3kg; Combined Error 0.01%F.S.; Non-linearity 0.015%F.S.; Repeatability 0.01%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity | 0.1kg/0.3kg/0.6kg/1kg/3kg |
|---|---|
| Combined Error | 0.01%F.S. |
| Non-linearity | 0.015%F.S. |
| Repeatability | 0.01%F.S. |
| Rated Output | 2.0±10%mV/V |
| Zero Balance | ±2%mV/V |
| Insulation Resistance | ≥5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Body Material | Aluminum Alloy |
| Safe Overload | 150%F.S. |
| IP Class | IP65 (Customizable) |
| Standard Cable | Φ4×2000mm (Customizable) |
| Ultra Precision | Combined Error 0.01% / Non‑linearity 0.015% |
| Material | Aluminum Alloy |
| Protection Class | IP65(Customizable) |
| Operation Temp. | -20~60°C |
| Cable Size | Ф4x2000mm(Customizable) |
| Certification | RoHS |
