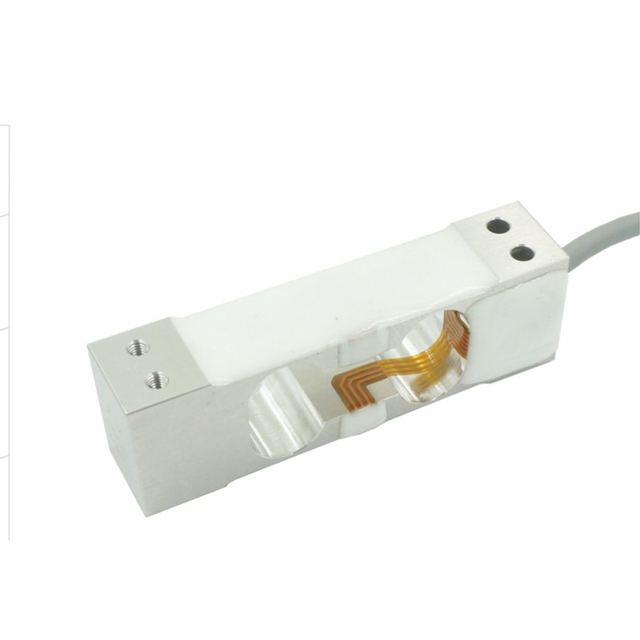

WL-112 Ultra Compact Single Point Load Cell 0.3-5kg Aluminum Alloy For Small Weight Determination
Model WL-112-02
Overview
WL-112 Ultra Compact Single Point Load Cell 0.3-5kg Aluminum Alloy For Small Weight Determination supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity Range 0.3kg/0.5kg/1kg/2kg/3kg/5kg; Rated Output 2.0±10%mV/V; Excitation Range 5~15 VDC; Combined Error 0.017%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity Range | 0.3kg/0.5kg/1kg/2kg/3kg/5kg |
|---|---|
| Rated Output | 2.0±10%mV/V |
| Excitation Range | 5~15 VDC |
| Combined Error | 0.017%F.S. |
| Materials | High-Strength Aluminum Alloy |
| Zero Balance | ±2%mV/V |
| Safe Overload | 150%F.S. |
| Size Of Cable | Ф4x400mm (Customizable) |
| Operation Temp | -20~60°C |
| Protection Class | IP65 |
| Series | Load Cell |
| Productname | Single Point Load Cell |
| Capacity | 0.3kg/0.5kg/1kg/2kg/3kg/5kg |
| Non-linearity | 0.015%F.S. |
| Repeatability | 0.017%F.S. |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Alloy |
| Cable Size | Ф4x400mm(Customizable) |
| Certification | RoHS |
