Overview

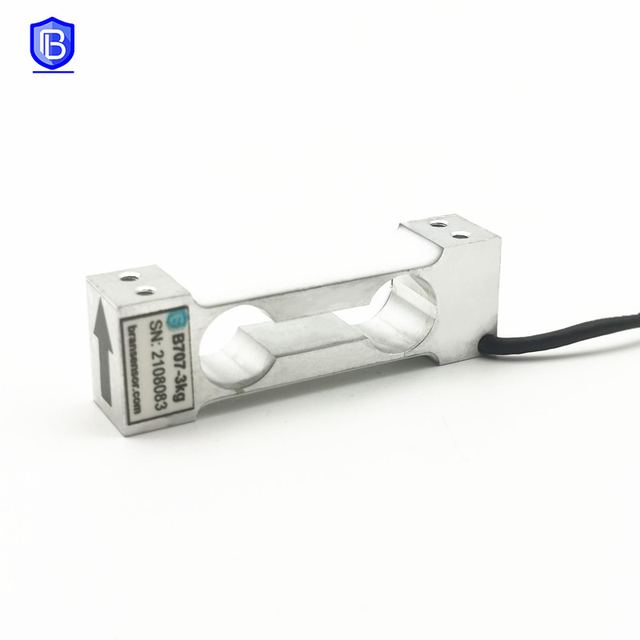

WL-112 Aluminum Alloy Single Point Load Cell 0.3kg To 5kg With High Side Load Tolerance, listed by OK Brans Measuring And Controlling Technology Co., Ltd in Hefei, Anhui. Published figures include capacity range 0.3kg/0.5kg/1kg/2kg/3kg/5kg, rated output 2.0±10%mV/V and excitation range 5~15 VDC.

Technical specifications

Capacity Range	0.3kg/0.5kg/1kg/2kg/3kg/5kg
Rated Output	2.0±10%mV/V
Excitation Range	5~15 VDC
Combined Error	0.017%F.S.
Materials	High-Strength Aluminum Alloy
Zero Balance	±2%mV/V
Safe Overload	150%F.S.
Size Of Cable	Ф4x400mm (Customizable)
Operation Temp	-20~60°C
Protection Class	IP65
Series	Load Cell
Productname	Single Point Load Cell
Capacity	0.3kg/0.5kg/1kg/2kg/3kg/5kg
Non-linearity	0.015%F.S.
Repeatability	0.017%F.S.
Insulation Resistance	≧5000MΩ/100VDC
Recommended Excitation	5~15VDC
Material	Aluminum Alloy
Cable Size	Ф4x400mm(Customizable)
Certification	RoHS
