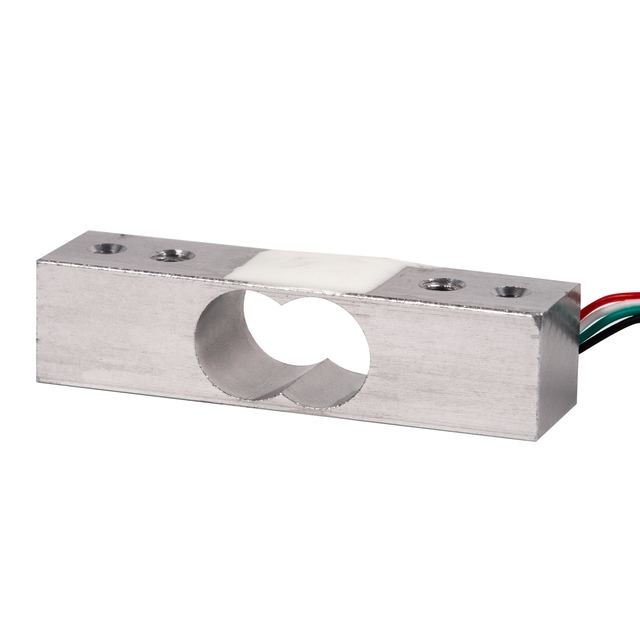

WL-111 High Precision Aluminum Alloy Single Point Load Cell 2kg 5kg 10kg 15kg 20kg 50kg
Model WL-111-01
Overview
WL-111 High Precision Aluminum Alloy Single Point Load Cell 2kg 5kg 10kg 15kg 20kg 50kg supplied by OK Brans Measuring And Controlling Technology Co., Ltd. Key published specifications: Capacity Range 2kg/5kg/10kg/15kg/20kg/50kg; Rated Output 1.8±10%mV/V; Excitation Range 5~15 VDC; Combined Error 0.02%F.S.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Capacity Range | 2kg/5kg/10kg/15kg/20kg/50kg |
|---|---|
| Rated Output | 1.8±10%mV/V |
| Excitation Range | 5~15 VDC |
| Combined Error | 0.02%F.S. |
| Materials | High-Strength Aluminum Alloy |
| Zero Balance | ±0.02mV/V |
| Safe Overload | 150%F.S. |
| Size Of Cable | Ф4x350mm (Customizable) |
| Operation Temp | -20~60°C |
| Protection Class | IP65 |
| Accuracy | 0.02% F.S. Combined Error |
| Capacity | 2kg/5kg/10kg/15kg/20kg/50kg |
| Non-linearity | 0.02%F.S. |
| Repeatability | 0.02%F.S. |
| Insulation Resistance | ≧5000MΩ/100VDC |
| Recommended Excitation | 5~15VDC |
| Material | Aluminum Aloy |
| Cable Size | Ф4x350mm(Customizable) |
