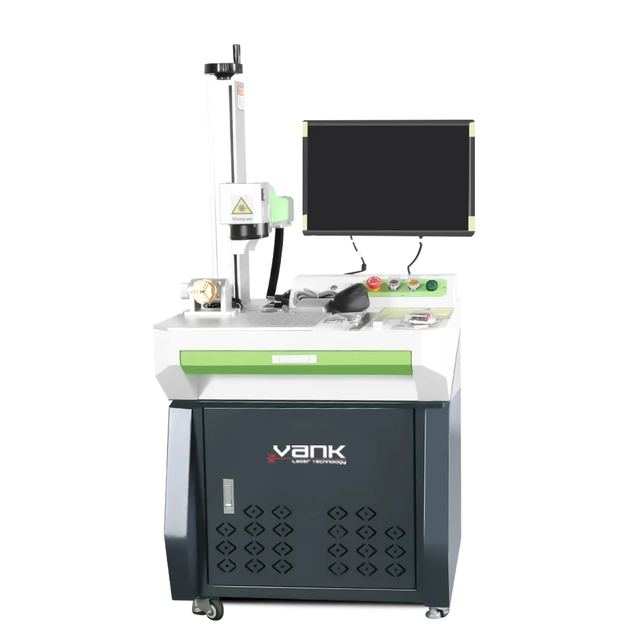

Vanklaser 50W Desktop Fiber Laser Marking Machine & Engraving Machine
Overview
Vanklaser 50W Desktop Fiber Laser Marking Machine & Engraving Machine supplied by Vank. Key published specifications: Model Fiber Laser Marking Machine; Laser Wavelength 1064 nm; Pulse Repetition Frequency 1 kHz - 4000 kHz; Pulse Widthge 2 ns - 500 ns. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Model | Fiber Laser Marking Machine |
|---|---|
| Laser Wavelength | 1064 nm |
| Pulse Repetition Frequency | 1 kHz - 4000 kHz |
| Pulse Widthge | 2 ns - 500 ns |
| Est. Laser Service Life | 100,000 hours |
| Laser Class Leve | Class 4 |
| Maximum Marking Speed | 7000 mm/s |
| Maximum Engraving Depth | 0.1 mm (Material Dependent) |
| Marking Accuracy | ±0.01 mm (±0.0004 in) |
| Positioning Accuracy | ±1 mm (±0.04 in) |
| Minimum Markable Font Size | 0.15 mm |
| Minimum Line Width | 0.02 mm |
| Power Supply Voltage | 220V/110V, 50/60 Hz |
| Cooling Mode | Air Cooling |
| Control Software | EZCAD / LightBurn Compatible |
| Supported Operating Systems | Windows XP/Vista/7/8/10/11 |
| Storage Temperature | -10°C - 60°C (14°F - 140°F) |
| Operating Temperatu | 10°C - 40°C (50°F - 104°F) |
| Operating Humidity | 10% - 90% RH (Non-Condensing) |
| Diameter | 50 mm |
| Chuck size | 160 × 98 mm |
