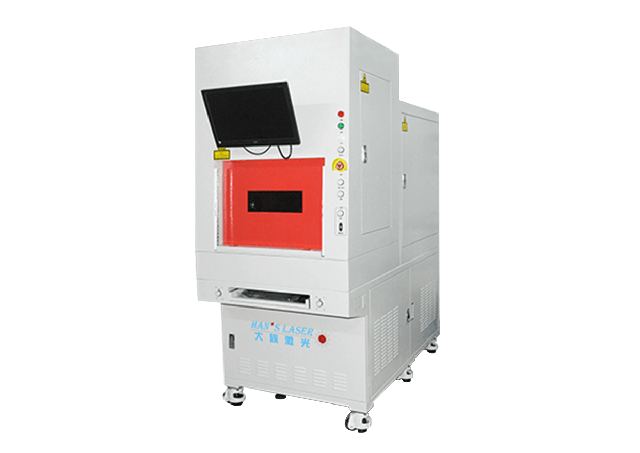

Pico-second Laser Marking & Engraving Machine
Overview
Pico-second Laser Marking & Engraving Machine supplied by Laser Corporation. Listed under Laser Marking Machines. Key published specifications: Laser Type Picosecond Laser; Wavelength 1064 nm (nominal); Min Beam Diameter < 10 µm; Pulse Frequency 10 – 1000 kHz. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Laser Type | Picosecond Laser |
|---|---|
| Wavelength | 1064 nm (nominal) |
| Min Beam Diameter | < 10 µm |
| Pulse Frequency | 10 – 1000 kHz |
| Output Power | 30 Watts |
| Repetition Accuracy | ± 0.0001” (0.003mm) |
| Cooling System | Fully Water Cooled |
| Marking Field Size | 3.93″ x 3.93″ (100mm x 100mm) |
| Operation System | WINDOWS 10 |
| Laser Safety Level | Class I |
| Power Consumed | 2KW |
| Weight (Unpacked) | 980 lbs (445kg) |
| Warranty Coverage | 1-year |
| Laser Safety Compliance | FDA(CDRH) |
| Running Temperature | 15℃-35℃ / 59°-95°F |
