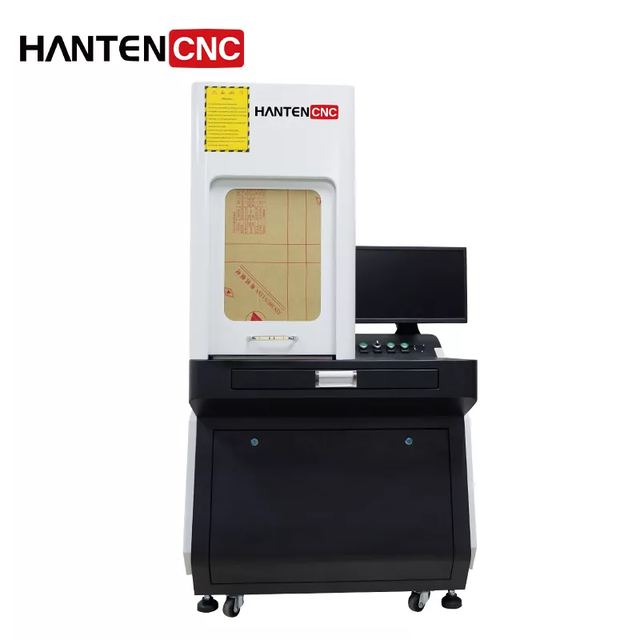

20w 30w 50w Fiber Laser Marking Machine For Metal Engraving
Model HTF-20
Overview
20w 30w 50w Fiber Laser Marking Machine For Metal Engraving supplied by HANTENCNC. Key published specifications: Power 20W; Supply voltage 110V/220V、50/60Hz; Net weight About 100Kg; Machine size 940*970*1600mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Power | 20W |
|---|---|
| Supply voltage | 110V/220V、50/60Hz |
| Net weight | About 100Kg |
| Machine size | 940*970*1600mm |
| Laser source | JPT/Rsycus/MAX |
| Beam q uality | ＜1.5m ² |
| Cable length | 2m |
| Maximum pulse energy | 0.8mJ |
| Frequency range | 1-600kHz |
| Marking area | 100*100mm-300*300 |
| Cooling system | Air cooled |
| Power consumption | ＜110W |
| Output beam diameter | 7±0.5mm |
| Laser wavelength | 1064nm |
| Marking speed | 0-7000mm/s |
| Marking Linewidth | 0.01mm-0.1mm |
