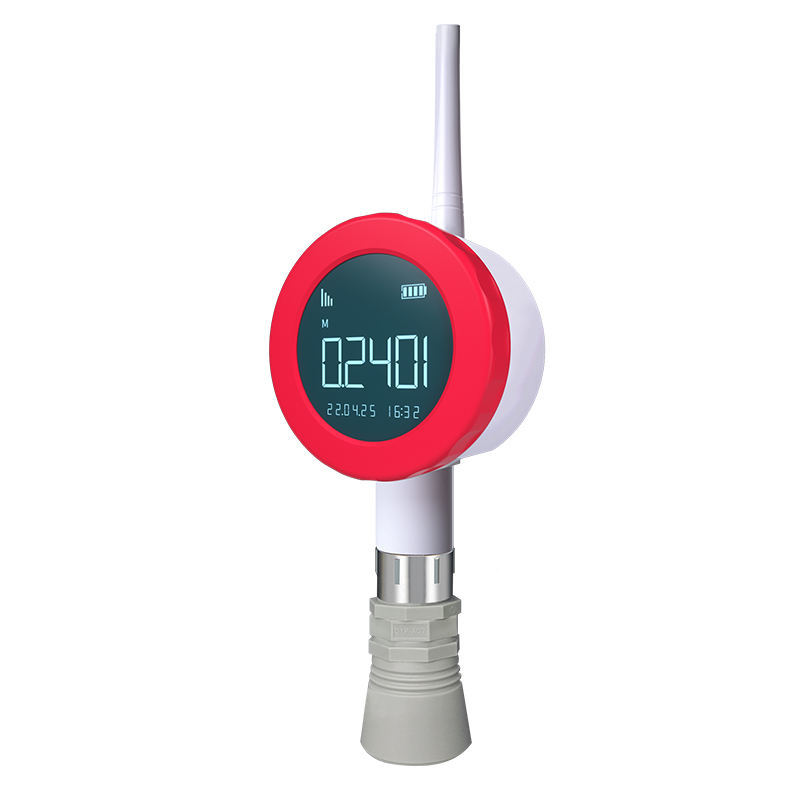

Ultrasonic Level Measurement 8M Range IP66 CE ROHS For Liquid Height Detection
Model TP2405
Overview
SHENZHEN TOPRIE ELECTRONICS CO.,LTD in Shenzhen, Guangdong lists Ultrasonic Level Measurement 8M Range IP66 CE ROHS For Liquid Height Detection. Published figures include display TFT LCD screen, wake-up mode Button, timing and operating temperature -30℃~70℃ (Medium does not crystallize).
Technical specifications
| Display | TFT LCD screen |
|---|---|
| Power Consumption | Standby current ≤80uA, average data transmission current ≤150mA |
| Wake-up Mode | Button, timing |
| Operating Temperature | -30℃~70℃ (Medium does not crystallize) |
| Measuring Range | 0-8M (Measuring angle 15 or 20 degrees optional) |
| Measurement Accuracy | ±(1+S*0.3)%CM |
| Measurement Blind Area | 25CM |
| Interface Specifications | Ultrasonic measurement |
| Protection Level | Waterproof model IP66; explosion-proof model IP68 |
| Certification | CE，ROHS |
| Range | 8m 15° |
| Accuracy | 1+S*0.3%F.S |
| Battery Capacity | Non Rechargeable Battery 3.6V 17000mAh |
