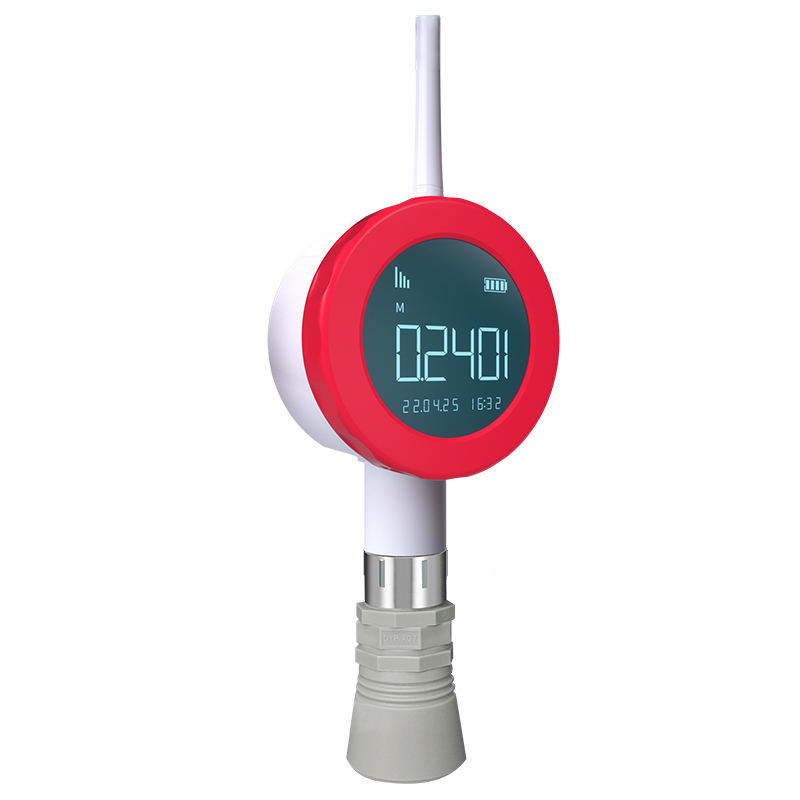

Ultrasonic Level IP66 CE ROHS For Storage Tank Liquid Sensing
Model TP2405
Overview
Ultrasonic Level IP66 CE ROHS For Storage Tank Liquid Sensing, from SHENZHEN TOPRIE ELECTRONICS CO.,LTD in Shenzhen, Guangdong. Published figures include display TFT LCD screen, wake-up mode Button, timing and operating temperature -30℃~70℃ (Medium does not crystallize).
Technical specifications
| Display | TFT LCD screen |
|---|---|
| Power Consumption | Standby current ≤80uA, average data transmission current ≤150mA |
| Wake-up Mode | Button, timing |
| Operating Temperature | -30℃~70℃ (Medium does not crystallize) |
| Measuring Range | 0-8M (Measuring angle 15 or 20 degrees optional) |
| Measurement Accuracy | ±(1+S*0.3)%CM |
| Measurement Blind Area | 25CM |
| Interface Specifications | Ultrasonic measurement |
| Protection Level | Waterproof model IP66; explosion-proof model IP68 |
| Certification | CE，ROHS |
| Range | 8m 20° |
| Accuracy | 1+S*0.3%F.S |
| Battery Capacity | Non Rechargeable Battery 3.6V 17000mAh |
