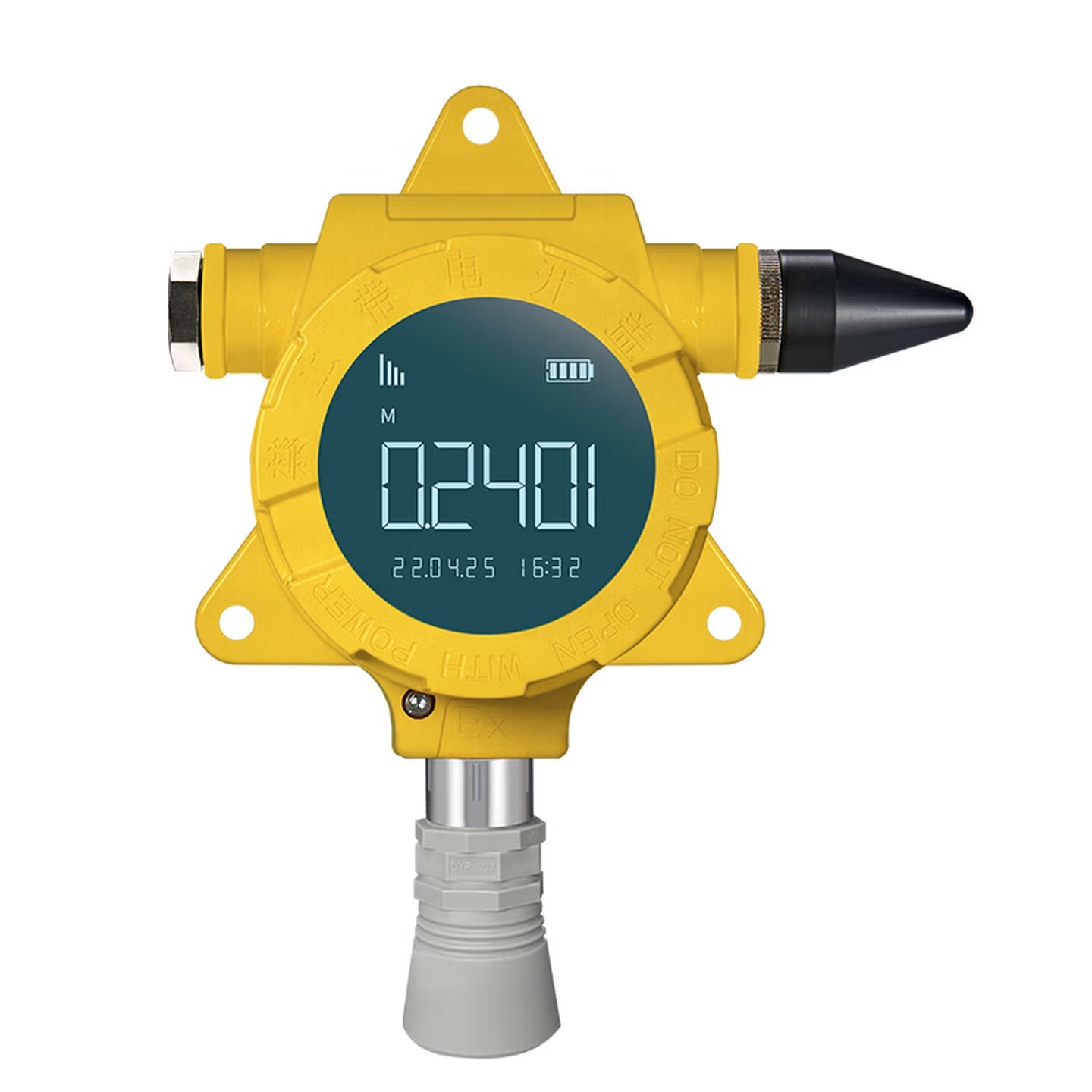

Non-contact Ultrasonic Level Sensor for Water Tank & Pool Liquid Monitoring
Model TP2405-EX
Overview
Non-contact Ultrasonic Level Sensor for Water Tank & Pool Liquid Monitoring, listed under Tank Monitoring Systems by SHENZHEN TOPRIE ELECTRONICS CO.,LTD in Shenzhen, Guangdong. Published figures include display TFT LCD screen, wake-up mode Button, timing and operating temperature -30°C~70°C(Medium does not crystallize).
Technical specifications
| Display | TFT LCD screen |
|---|---|
| Power consumption | Standby current ≤80uA, average data transmission current ≤150mA1 |
| Wake-up mode | Button, timing |
| Operating temperature | -30°C~70°C(Medium does not crystallize) |
| Measuring range | 0-8M (Measuring angle 15 or 20 degrees optional) |
| Measurement accuracy | ±(1+S*0.3%)CM |
| Measurement blind area | 25CM |
| Interface specifications | Ultrasonic measurement |
| Protection level | Waterproof model IP66; explosion-proof model IP68 |
| Certification | CE，ROHS |
| Range | 8m （15° Or 20°） |
| Accuracy | 1+S*0.3%F.S |
