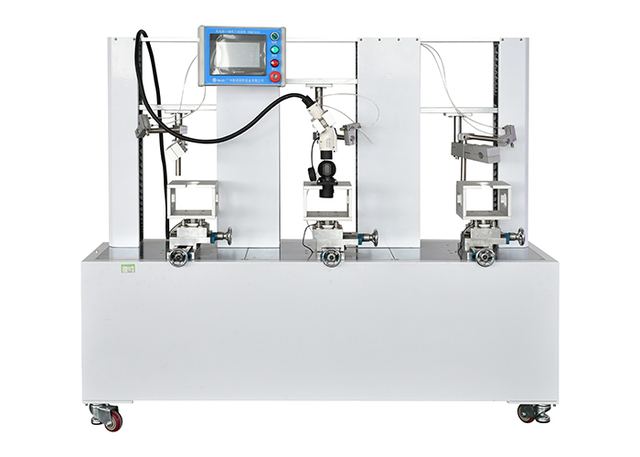

UL 6073-2021 Clause 9.4 PV Connector Cyclic Tensile Testing Machine For Durability Testing
Overview
UL 6073-2021 Clause 9.4 PV Connector Cyclic Tensile Testing Machine For Durability Testing supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Standard UL6073-2021 Clause 9.4 Cyclic Tensile Test; Test Stations 3 independent stations; Sample Range PV connectors with cables ≤250AWG; Test Force 10~1000N (customizable). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Standard | UL6073-2021 Clause 9.4 Cyclic Tensile Test |
|---|---|
| Test Stations | 3 independent stations |
| Sample Range | PV connectors with cables ≤250AWG |
| Test Force | 10~1000N (customizable) |
| Min. Force Display | 0.01N |
| Min. Displacement Display | 0.01mm |
| Test Speed | 0.01~100mm/min |
| Test Frequency | 1-2 cycles/min (3-station adjustable) |
| Drive | Servo motor |
| Structure | Floor-standing, heavy-duty steel base |
| Lifting | Precision sliding stage |
| Dimensions | W×D×H = 1200×600×1620mm |
| Weight | Approx. 200kg |
| Power | AC220V±10% / 50-60Hz |
| Environment | 5-35℃, humidity 30%-90% |
