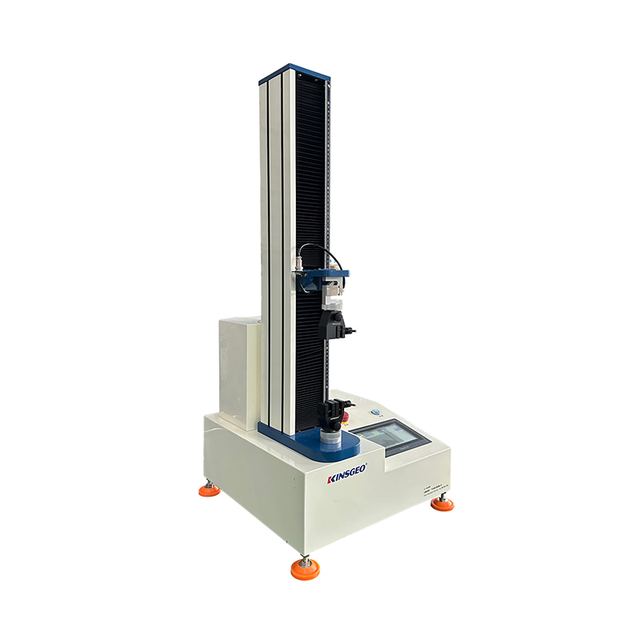

New Design Single Column Tensile Testing Machine
Model KJ-1065C
Overview
New Design Single Column Tensile Testing Machine supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Key published specifications: Certification CE/ISO; Power AC220V 50Hz; Weight 90kg; Application Universal Tester. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE/ISO |
|---|---|
| Power | AC220V 50Hz |
| Weight | 90kg |
| Application | Universal Tester |
| Standard | BS.EN.ASTM |
| Stroke | 650mm(excluding Clamp) |
| Tester Resolution | Constant The Resolution |
| Design Standards | ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7 |
| Model | KJ-1065C |
| Capacity | 10~200kg (optional) |
| Speed Range | 50-400mm/min adjustable, constant speed, 300mm/min |
| Test Space | 120mm MAX |
| Dimensions (W×D×H) | 50×50×120cm |
| Optional Accessories | Stretcher, air clamp |
| Compliant Standards | ASTM D3330, FINAT, GB/T2792, PSTC |
| Technical Specifications | Capacity: 10KG ~200kg |
| Accuracy Class | 0.5 grade |
| Effective Test Width | 100mm |
| Effective Stroke | 850mm |
| Test Speed | 50~400mm/min |
| Speed Accuracy | Within ±0.5% of the indicated value |
| Displacement Measurement Accuracy | Within ±0.5% of the indicated val |
| Control | PC |
| Accuracy | ±0.5% or better |
