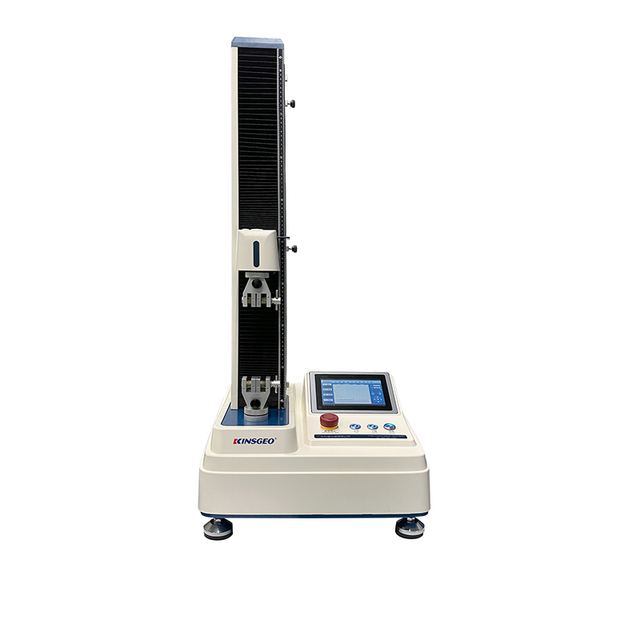

Electronic Computerized Tensile Testing Machine

Model KJ-1065A-H

Electronic Computerized Tensile Testing Machine

Overview

Electronic Computerized Tensile Testing Machine supplied by GUANGDONG KEJIAN INSTRUMENT CO.,LTD. Key published specifications: Certification CE/ISO; Power 220V/50HZ; Application Adhesive Tape Tester; Standard SATRA PM123. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

CertificationCE/ISO
Power220V/50HZ
ApplicationAdhesive Tape Tester
StandardSATRA PM123
Measuring Range5kg
Load2000g
Power SupplyAC220V/50HZ
Dimention80*50*150cm
FunctionAdhesive Tape Test Machine
Accuracy Class0.5 Class
Max Load500N
Speed Of Test0.01-500mm/min
Capacity choice1,2,5,10 kg
Stroke650mm(excluding clamp)
Range of speed0.01~500mm/min
Effective testing space1200mmMAX
Operation methodWindows operation
Optional accessoriesstretcher, clamp
Weight70kg
Design standardASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Force protectionsystem setting
ControlPC
Test Speed50～400mm/min adjustable,constant speed 300mm/min
Accuracy±0.5% or better
