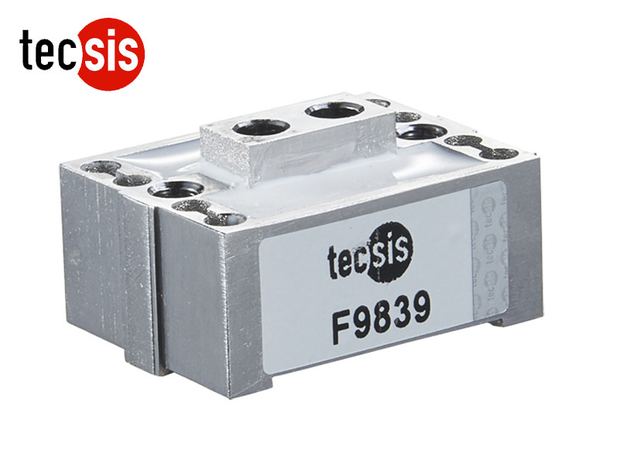

Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor
Model F9839
Overview
Two Dimensional Waterproof Load Cell 50kg With Stainless Steel Sensor, listed under Load Sensors by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. The listing gives type Square, material Stainless Steel and capacity 50kg.
Technical specifications
| Type | Square |
|---|---|
| Material | Stainless Steel |
| Capacity | 50kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 1.0±10%mV/V |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.5% F.S. |
| Total error | 0.5% F.S. |
| Temp. effect on output | 0.2% F.S. / 10ºC |
| Temp. effect on zero | 0.2% F.S. / 10ºC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~80ºC |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Cable size | Ø2.4×3000mm |
| Standard | carton |
| Model | F9839 |
| Technical parameters | Specifications |
| Power | Exc+(Red) Exc-(Black); |
