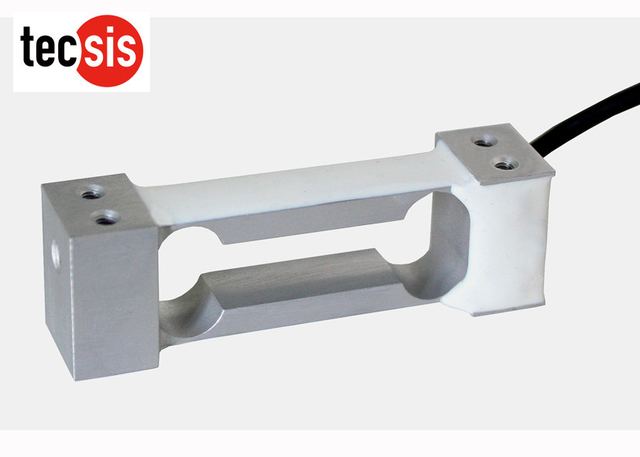

IP 65 Single Point Precision Load Cells Parallel Weighing Sensors
Model F4802
Overview
Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong lists IP 65 Single Point Precision Load Cells Parallel Weighing Sensors under Load Sensors. The listing gives type Single Point Load Cell, material Aluminum Alloy and capacity 0.3kg~10kg.
Technical specifications
| Type | Single Point Load Cell |
|---|---|
| Material | Aluminum Alloy |
| Capacity | 0.3kg~10kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| Rated output | 1.0±10%mV/V (0.3~0.5kg) 2.0±10%mV/V (1~10kg) |
| Zero balance | ±2% F.S. |
| Non-linearity | 0.02% F.S. |
| Hysteresis | 0.02% F.S. |
| Repeatability | 0.02% F.S. |
| Creep (30min) | 0.02% F.S. |
| Temp. effect on output | 0.025% F.S. / 10ºC |
| Temp. effect on zero | 0.025% F.S. / 10ºC |
| Insulation | ≥5000MΩ/ 100VDC |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated temp. range | - 10~40ºC |
| Operation temp. range | - 20~60ºC |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Cable size | Ø3×450 mm |
| Platform size | 200×200mm |
| Standard | carton |
| Model | F4802 |
| Technical parameters | Specifications |
| Input | Red(+) Black(-); |
