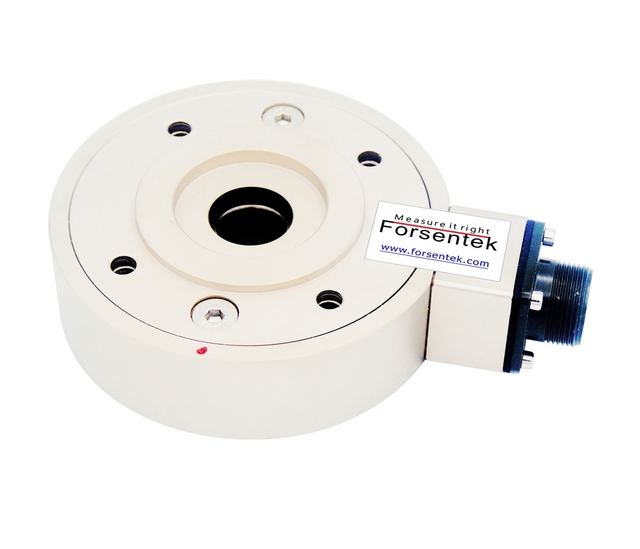

Flange Mount Shaft-through Load Cell 0-1000kg Web Tension Sensor
Model FZTK
Overview
Flange Mount Shaft-through Load Cell 0-1000kg Web Tension Sensor, listed under Load Sensors by Forsentek Co. Limited. Rated output 1.5 mV/V, excitation 3-12V and zero balance ±0.03mV/V are among the specifications published.
Technical specifications
| Rated output | 1.5 mV/V |
|---|---|
| Excitation | 3-12V |
| Zero balance | ±0.03mV/V |
| Nonlinearity | ±0.3% of full capacity |
| Hysteresis | ±0.3% of full capacity |
| Nonrepeatability | ±0.1% of full capacity |
| Creep(3min) | ±0.1% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | 0...+40 o C |
| Operating temperature | -20...+60 o C |
| Temperature shift zero | ±0.02% R.O./ o C |
| Temperature shift span | ±0.02% R.O./ o C |
| Input resistance | 380±30 ohms |
| Output resistance | 352±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Alloy steel |
| Cable | Ø5.3*3000mm 4-core shielded |
| Wiring code @ Tension | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
| Structure | Shaft-through Load Cell |
| Capacity | 15kg 25kg 50kg 100kg 200kg 300kg 500kg 1000kg |
