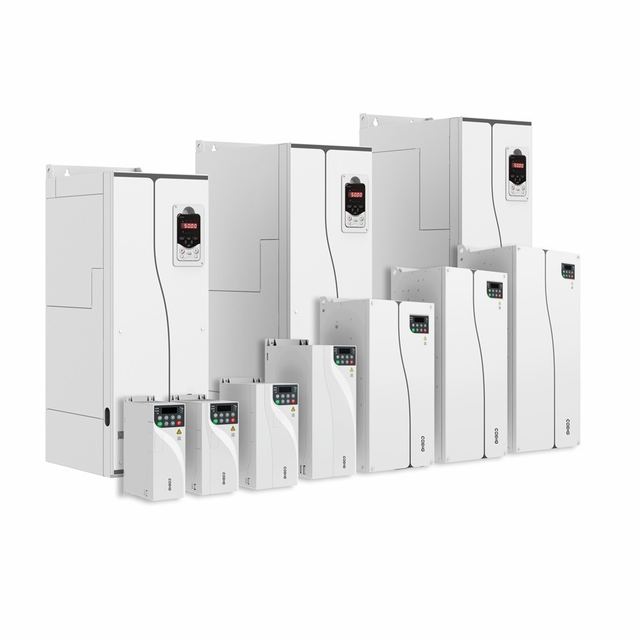

Three Phase Variable Frequency Drive For Crane 380V-480V
Model HV 610-1
Overview
Three Phase Variable Frequency Drive For Crane 380V-480V supplied by SENDEN TECH LIMITED. Key published specifications: Certification CE, IEC; Analog Input Terminal AI1、AI2：0V～10V/ 0 (4)mA～20mA; Input Voltage 380V (-15%) To 480V (+10%) Three-phase; Installation Method Installed In A Cabinet. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Analog Input Terminal | AI1、AI2：0V～10V/ 0 (4)mA～20mA |
| Input Voltage | 380V (-15%) To 480V (+10%) Three-phase |
| Installation Method | Installed In A Cabinet |
| V/F Curve | Straight-line Type, Multi-point Type |
| Output Voltage | 0V-input Voltage |
| Acceleration And Deceleration Curve | Straight Line, S-curve |
| Motor Type | Asynchronous Motor, Synchronous Motor |
| Analog Output Terminals | 1-channel 0V-10V/0(4)mA-20mA |
| Input Power Frequency | (50Hz/60Hz)±5% |
| Speed Range | 1:10 V/F; 1:100 OLVC; 1:1000 CLVC |
| Cooling Method | Air Cooling |
| Output Frequency | 0Hz-600Hz |
| Torque response | ≤ 5ms, In Vector Control Mode |
