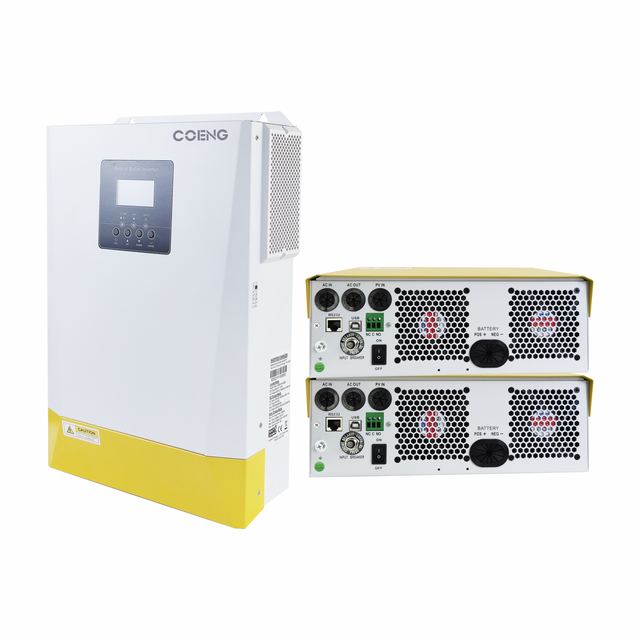

5.5kW 230V Hybrid Inverter
Model 5500HHP-48
Overview
5.5kW 230V Hybrid Inverter supplied by SENDEN TECH LIMITED. Key published specifications: Certification CE, IEC; Size 482*290*113mm; Output Type Single, Pure Sine Wave; Gross Weight 13Kg. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, IEC |
|---|---|
| Size | 482*290*113mm |
| Output Type | Single, Pure Sine Wave |
| Gross Weight | 13Kg |
| Output Voltage | 230VAC ± 5% |
| MPPT Voltage Range | 120V-450V |
| Output Frequency | 50Hz/60Hz Auto Sensing |
| Input Voltage | 230vac |
| Rated power | 5500VA/ 5500W |
| Operating Temperature Range | -10°C to 50℃ |
| Max PV Array Power | 5500W |
| Application | Home Solar Power System |
