Overview

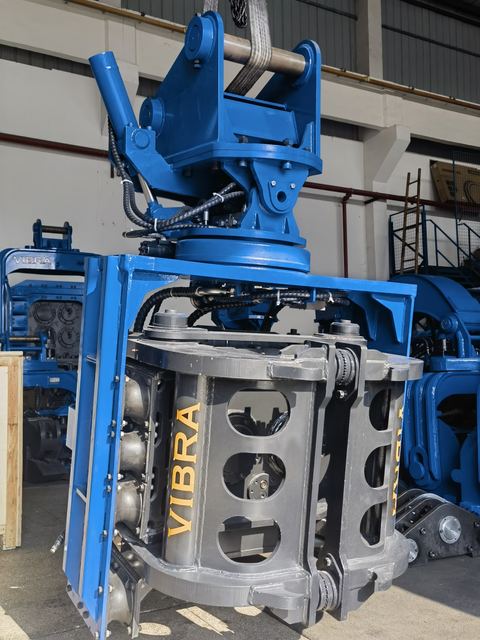

SV-300 Side Grip Pile Driver supplied by Shanghai Yekun Construction Machinery Co., Ltd. Listed under Pile Drivers. Key published specifications: Certification ISO 9001:2015; Eccentric Moment 5.6 kg·m; Centrifugal Force 558 kN; Frequency Range 2,300 – 3,000 rpm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	ISO 9001:2015
Eccentric Moment	5.6 kg·m
Centrifugal Force	558 kN
Frequency Range	2,300 – 3,000 rpm
Side Clamp Force	385 kN
Bottom Clamp Force	490 kN
System Pressure	32 MPa
Required Flow	220 – 280 L/min
Rotation Angle	360° continuous
Tilt Angle	±30° bidirectional
Dimensions (L×W×H)	1,343 × 1,230 × 2,923 mm
Weight (with connector & clamp)	3,150 kg
Compatible Excavators	25 – 32 tons
