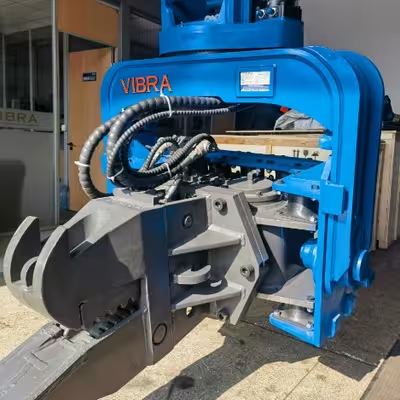

360 Degree Pile Driver
Model FV-300R
Overview
Shanghai Yekun Construction Machinery Co., Ltd in Shanghai lists 360 Degree Pile Driver under Pile Drivers. The listing gives certification ISO 9001:2015, rotating angle 360 Degrees and rotation/tilt angle 360/±30 Degree.
Technical specifications
| Certification | ISO 9001:2015 |
|---|---|
| Rotating Angle | 360 Degrees |
| Rotation/tilt Angle | 360/±30 Degree |
| Excavator | 30-33 Ton |
| Vibration frequency | 2800 rpm |
| Centrifugal force | 350 kN |
| Operating pressure | 32 MPa |
| Work flow (merged) | 224 L/min |
| Max. pile length | 12 m |
| Hammer weight | 2100 kg |
| Arm weight | 670 kg |
| Rotation | 360° continuous |
| Axial pull capacity | 90 tons |
| Suitable excavator | 30 – 33 tons |
| Tool change time | < 10 minutes |
