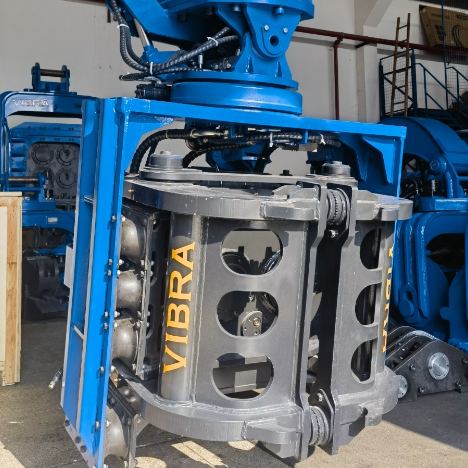

Side Grip Pile Driver SV-300
Model SV-300
Overview
Side Grip Pile Driver SV-300, listed by Shanghai Yekun Construction Machinery Co., Ltd in Shanghai. Published figures include certification ISO 9001:2015, eccentric moment 5.6 Kgm and centrifugal force 558kn.
Technical specifications
| Certification | ISO 9001:2015 |
|---|---|
| Eccentric Moment | 5.6 Kgm |
| Centrifugal Force | 558kn |
| Frequency | 2300~3000rpm |
| Side Clamp Force | 385 Kn |
| Bottom Clamp Force | 490 Kn |
| Operation Pressure | 32 Mpa |
| Operation Flow | 220~280 L/min |
| Frequency Range | 2300 – 3000 rpm |
| Working Pressure | 32 MPa |
| Working Flow | 220 – 280 L/min |
| Dimensions (L×W×H) | 1343×1230×2923 mm |
| Weight (incl. connector & clamp) | 3150 kg |
| Suitable Excavator | 25 – 32 tons |
| Rotation angle | 360° | Tilt angle: ±30° |
| Weight (including connector and clamp) | 3150 kg |
