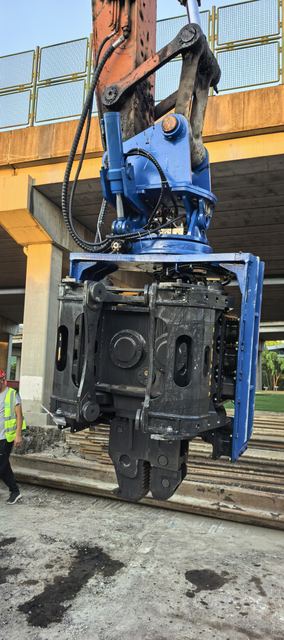

Side Grip Pile Driver with 360 Degree Rotation & Low Headroom Operation Capability

Model SV-400

Side Grip Pile Driver with 360 Degree Rotation & Low Headroom Operation Capability

Overview

Side Grip Pile Driver with 360 Degree Rotation & Low Headroom Operation Capability, listed under Pile Drivers by Shanghai Yekun Construction Machinery Co., Ltd in Shanghai. Certification ISO 9001:2015, eccentric moment 5.6 kg·m and centrifugal force 558 kN are among the specifications published.

Technical specifications

CertificationISO 9001:2015
Eccentric moment5.6 kg·m
Centrifugal force558 kN
Frequency range2300–3000 rpm
Side clamp force385 kN
Bottom clamp force490 kN
Working pressure32 MPa
Flow demand220–280 L/min
Dimensions (L×W×H)1343×1230×2923 mm
Weight (with connector & clamp)3150 kg
Suitable excavator25–32 ton
