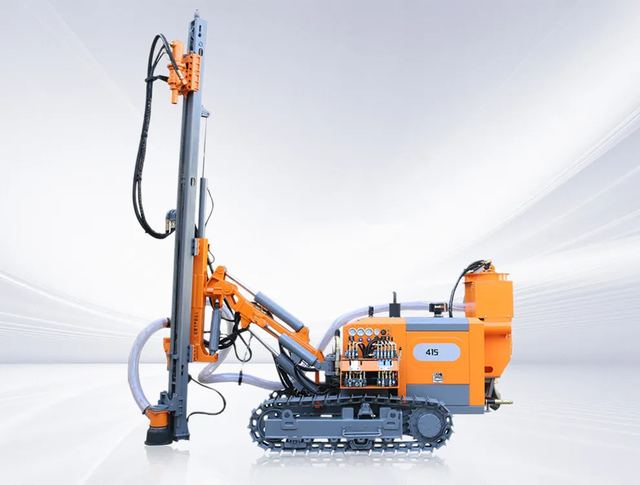

Surface Separated DTH Drill Rig ZGYX-415
Overview
D Miningwell in Quzhou, Zhejiang lists Surface Separated DTH Drill Rig ZGYX-415. The listing gives weight 4500KG, engine model 玉柴YCD4R12T-70 and engine rated power 50KW.
Technical specifications
| Weight | 4500KG |
|---|---|
| Engine Model | 玉柴YCD4R12T-70 |
| Engine rated power | 50KW |
| Drill pipe type | Standard 60*3m Optional 76*3 |
| The hole dilameter | Φ90 ‒ 127 mm |
| Torque (max) | 1850N.m |
| Swing speed(rpm) | 0-110r/min |
| Feed force | 15kN |
| Rig lifting force | 250KN |
| Mode of advancement | Cylinder Chain |
| Walking speed(km/h) | 2.5km/h |
| Transport dimension | 5500*2000*2100mm |
| Drilling Hole Diameter | Φ90 ‒ 127 mm |
