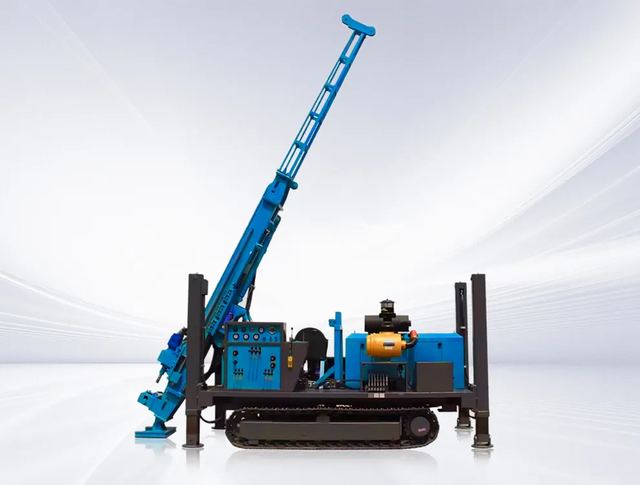

MW800 Hydraulic Water Well Drilling Rig
Model MW800I
Overview
MW800 Hydraulic Water Well Drilling Rig supplied by D Miningwell. Key published specifications: Weight 13T; Drill pipe length 1.5m 2.0m 3.0m 6.0m; One-time advance length 6.6m; Walking speed 2.5km/h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 13T |
|---|---|
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| One-time advance length | 6.6m |
| Walking speed | 2.5km/h |
| High leg stroke | 1.7m |
| Swing speed | 45-140rpm |
| Rig lifting force | 30T |
| Rapid rise speed | 20m/min |
| Fast feeding speed | 40m/min |
| Width of loading | 2.95m |
| Hoisting force of winch | 2T |
| Swing torque | 8850-13150N.m |
| Dimensions | 6300* 2300* 2950mm |
| The penetration efficiency | 15-35m/h |
| The engine brand | Cummins |
| Engine power | 153kW |
