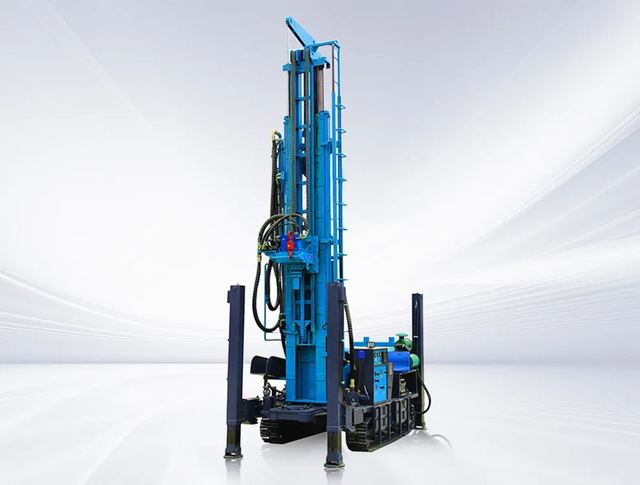

MW400 400m Hydraulic Crawler Water Well Drilling Rig
Model MW400I
Overview
MW400 400m Hydraulic Crawler Water Well Drilling Rig supplied by D Miningwell. Key published specifications: Weight 9.2T; Drill pipe length 1.5m 2.0m 3.0m 6.0m; One-time advance length 6.6m; Walking speed 2.5km/h. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Weight | 9.2T |
|---|---|
| Drill pipe length | 1.5m 2.0m 3.0m 6.0m |
| One-time advance length | 6.6m |
| Walking speed | 2.5km/h |
| High leg stroke | 1.4m |
| Swing speed | 66-135rpm |
| Rig lifting force | 24T |
| Rapid rise speed | 18m/min |
| Fast feeding speed | 33m/min |
| Width of loading | 2.7m |
| Hoisting force of winch | 2T |
| Swing torque | 6500-9000N.m |
| Dimensions | 6000* 2000* 2550mm |
| The penetration efficiency | 15-35m/h |
| The engine brand | Yuchai |
| Engine power | 92kW |
